3D printable chevy s10 lug nut cover (with test iterations) for the Chevrolet S-10: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

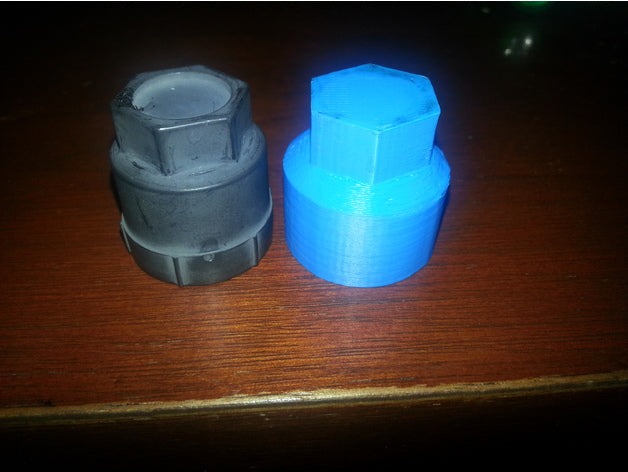

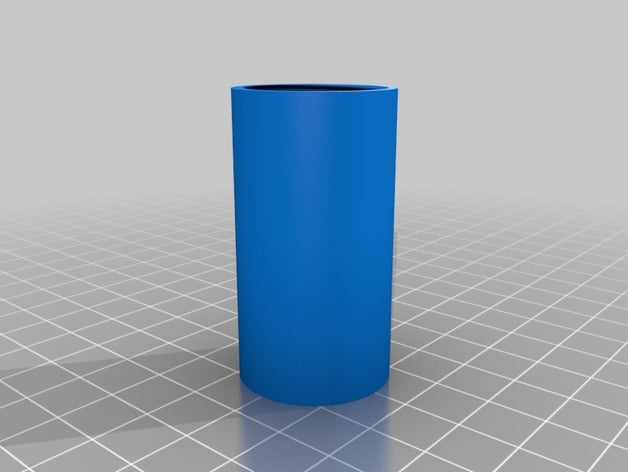

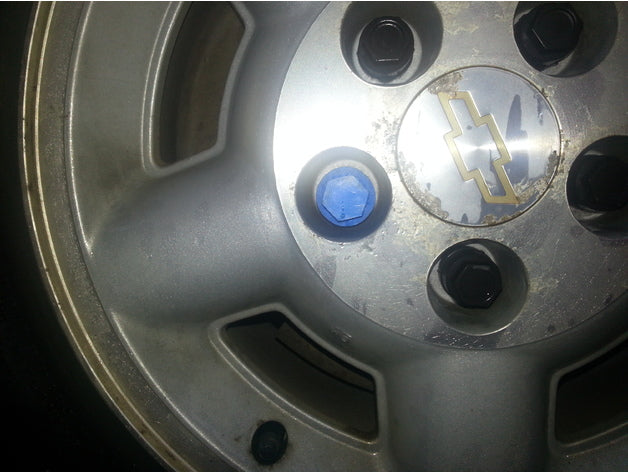

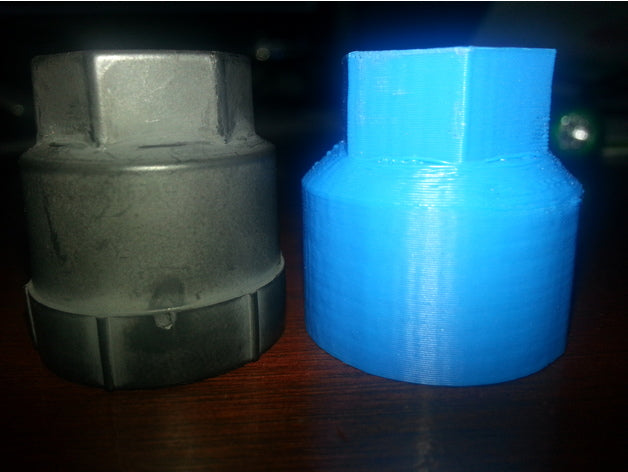

This is a test lug nut cover that I created mainly to test how the threads print. If they are correct I'll modify the cover to be more than just a cylinder. -UPDATED- Second iteration uploaded. Thinner wall, deeper hole, and scaled to 101% to counter ABS shrink. (successful threads). -UPDATED- Third iteration uploaded. Threads are good, so adjusted model to look like stock S10 lug nut cover. It's not quite OEM, but dang close! -UPDATED- I added the Fusion 360 file as well as an obj file for those interested in modifying this design. I could not find the original file, so I remade it. It should be very close to the original. -UPDATED- I made a Chevy bow tie cutout in the face of the cover and included the bow tie as well. If you have a dual extrusion printer the models should fit together as is. I do not, so I will be printing the parts out separately and pressing them together after. I will add pictures once I have printed this newest update. -UPDATED- I realized that the bow tie was backwards, so I corrected that. I also added a version of the lug nut cover and the bow tie insert with fillets to make them easier to press together for us non-dual extruder folks. If you are using a dual extruder printer use the models without the fillets.
Compatible vehicles
- Chevrolet S-10
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Chevy S10 Lug Nut Cover (With Test Iterations) |
|---|---|
| Category | Other |
| Make | Chevrolet |
| Model | S-10 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 8 (STL) |
| Part number | CAT-P05283 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Chevrolet parts
Browse all Chevrolet replacement parts or search the full 3D printable car parts library.
Design credit: original design by Jason Jensen on Thingiverse, licensed CC BY 4.0.
