Chevy Volt (2nd Gen) Console RAM Mount Bracket – Chevrolet Volt
Chevy Volt (2nd Gen) Console RAM Mount Bracket – Chevrolet Volt
3D printable chevy volt (2nd gen) console ram mount bracket for the Chevrolet Volt: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

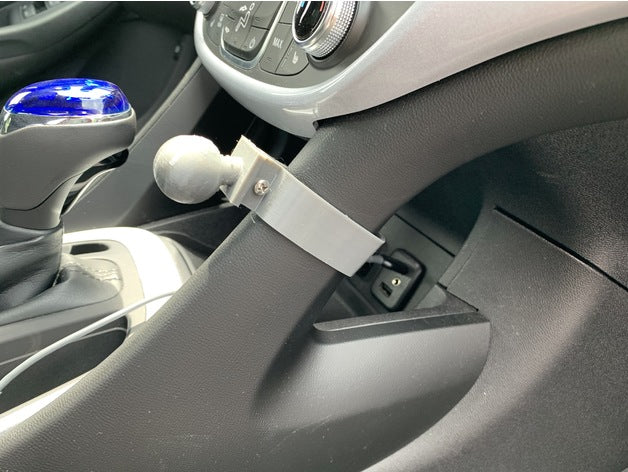

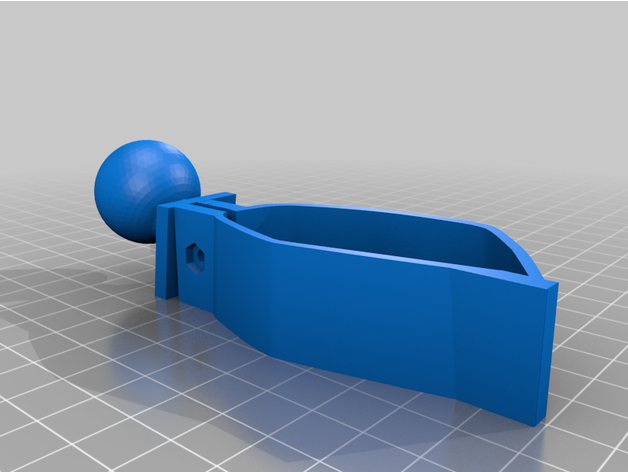

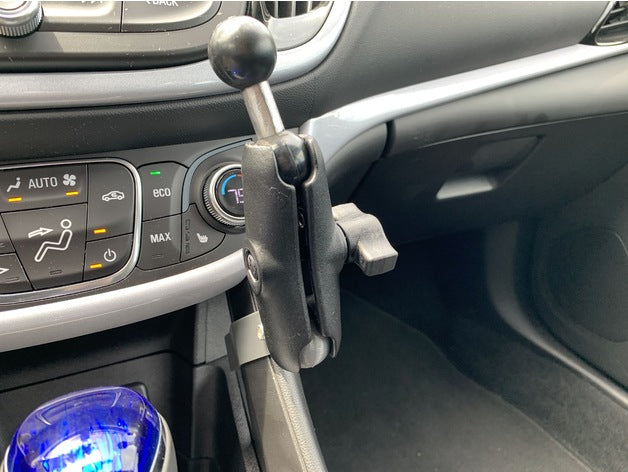

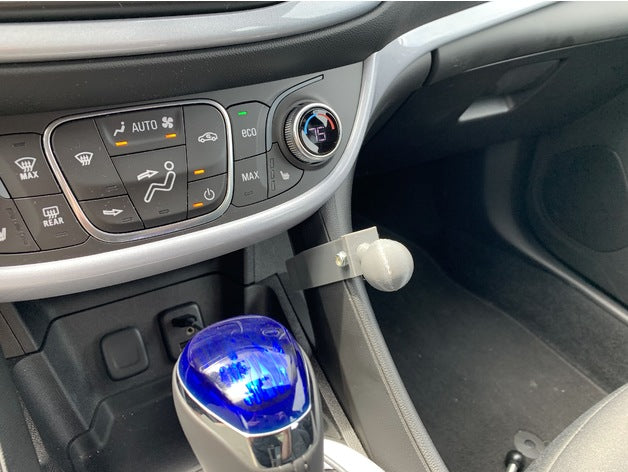

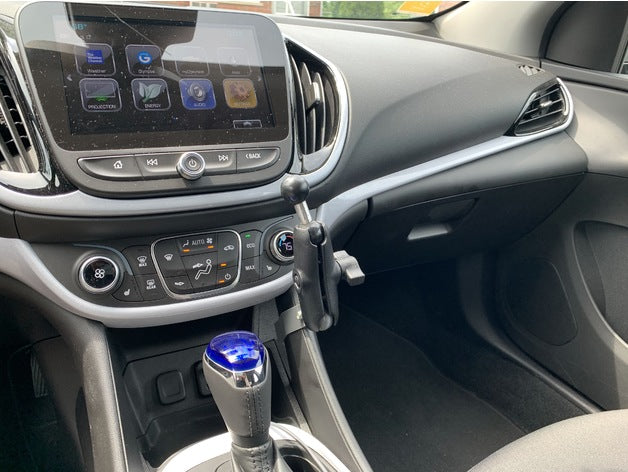

This is a center console 1" ball RAM style mount designed to fit in a 2nd. Gen Chevy Volt. I didn't like any of the commercially available mounting options out there and found this to fit my needs. I don't have any 3D modeling experience, In fact, this STL file is a combination of two separate STL files that I hacked together with PrusaSlicer. I welcome and encourage any improvements to this design. Please visit the original authors for their source files: -Volt center console bracket: https://www.thingiverse.com/thing:2804875 (CC BY 4.0) -1" ball RAM style mount borrowed from: https://www.thingiverse.com/thing:3196395 (BSD License) IMPORTANT: You need a screw & nut to firmly clamp the front of the bracket to the center console. There are cut-outs for a M3x12 screw & M3 hex nut, but really any screw and nut you had that would fit through the hole would work fine. Printing Recommendations: -I'd recommend printing in ABS or PET due to the potentially high-temperature requirements during the summer in your vehicle. -Consider a higher infill % in order to reinforce the ball and attachment point, especially if you plan on adding a significant amount of weight or other stress to the ball. Succesful printing with PETG, printed with a brim, and supports touching the build plate. (Supports are definitely needed under the ball).
Compatible vehicles
- Chevrolet Volt
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Chevy Volt (2nd Gen) Console RAM Mount Bracket |
|---|---|
| Category | Center Console |
| Make | Chevrolet |
| Model | Volt |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-P00457 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Chevrolet parts
Browse all Chevrolet replacement parts or search the full 3D printable car parts library.
Design credit: original design by Eric McClintock on Thingiverse, licensed CC BY.
