Replace a broken or missing custom a200 gear shifter on your Mercedes-Benz A 200 with this 3D printable part from PartsRemade.
About this part

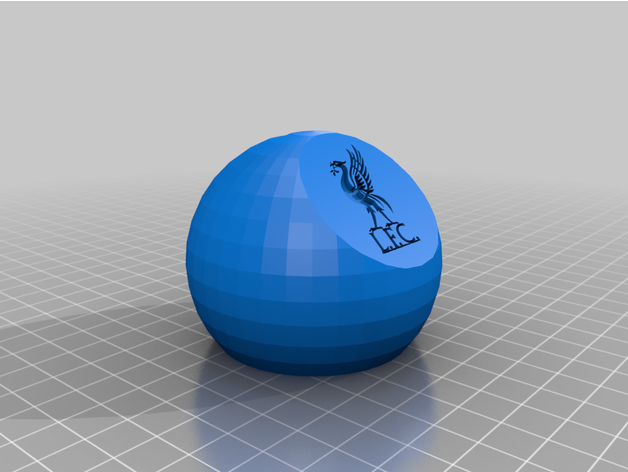

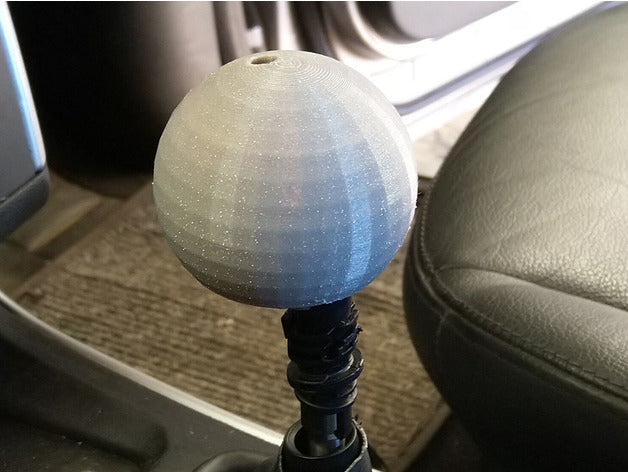

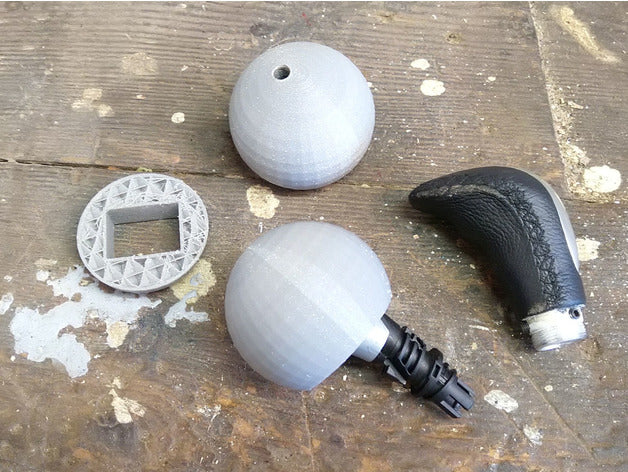

Last year my brother purchased a 2006 Mercedes A200, as to be expected with a car of that age there were certain things that needed to be fixed. The original gear shifter was very worn and the leather was peeling off. Initially he purchased an aftermarket gear shifter but once installed it was found to not fit securely onto the gear stick. As we were in lockdown my brother asked if I could design and 3D print a gear shifter for his car and I, with my limited knowledge of Tinkercad, took on the project. After taking multiple measurements and doing rough sketches of the design I began trying to create it in Tinkercad. Having limited experience, even in Tinkercad, it took many tries, lots of coffee and plenty of head scratching in order to get the first prototype. From the first prototype I was able to try various designs and adjustments, each with their own benefits and pitfalls. After many prototype prints I reached the final design and with the help of my brother we set about installing it. Filament Used: CCTREE Sparkle Grey PLA Hello3D Silky Rainbow PLA Other Items: - 3D Printer. - Bolt and nut. - Washer. - Common tools. Note about the Liverpool Version: Liverpool Logo Designer - fraser0206 Thing: 3254108 Thingiverse Link Instructions: 1.Remove the shifter skirt: You should be able to unscrew the plastic connector and pull down the leather skirt. 2.Remove the shifter head: Remove the shifter head, make sure to carefully unhook any clips holding it to the gear stick. 3 Attach your 3D printed gear shifter: Insert the shifter head into the custom gear shifter so that the large holes line up. Slide in Bolt, washer and nut. 4.Assemble the gear shifter: Place the gear shifter back onto the stick, make sure that it clips into place properly, some force may be required. Review: The image showing the Silky Rainbow gear Shifter is the review print. As this project was completed in April 2020 I have had 8 months of feedback on the final design. This gear shifter has proven to be very durable even though it was printed in PLA. it has lasted hundreds of kilometers of driving as well as time in the sun. I hope you enjoyed reading about this project as much as I enjoyed designing and testing it. If you want to read about other projects we have done please check out the other posts on our blog Check out the full blog post for this print here
Compatible vehicles
- Mercedes-Benz A 200
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Custom A200 Gear Shifter |
|---|---|
| Category | Knobs/Buttons |
| Make | Mercedes-Benz |
| Model | A 200 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 6 (STL) |
| Part number | CAT-P03721 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Mercedes-Benz parts
Browse all Mercedes-Benz replacement parts or search the full 3D printable car parts library.
Design credit: original design by DIY Electronics on Thingiverse, licensed CC BY.
