Engine Stand Spacers – 1989-2005 Mazda Miata NA/NB
Engine Stand Spacers – 1989-2005 Mazda Miata NA/NB
Need a replacement engine stand spacers for your 1989-2005 Mazda Miata NA/NB? This 3D model lets you print a replacement for a broken, worn or missing original piece.
About this part

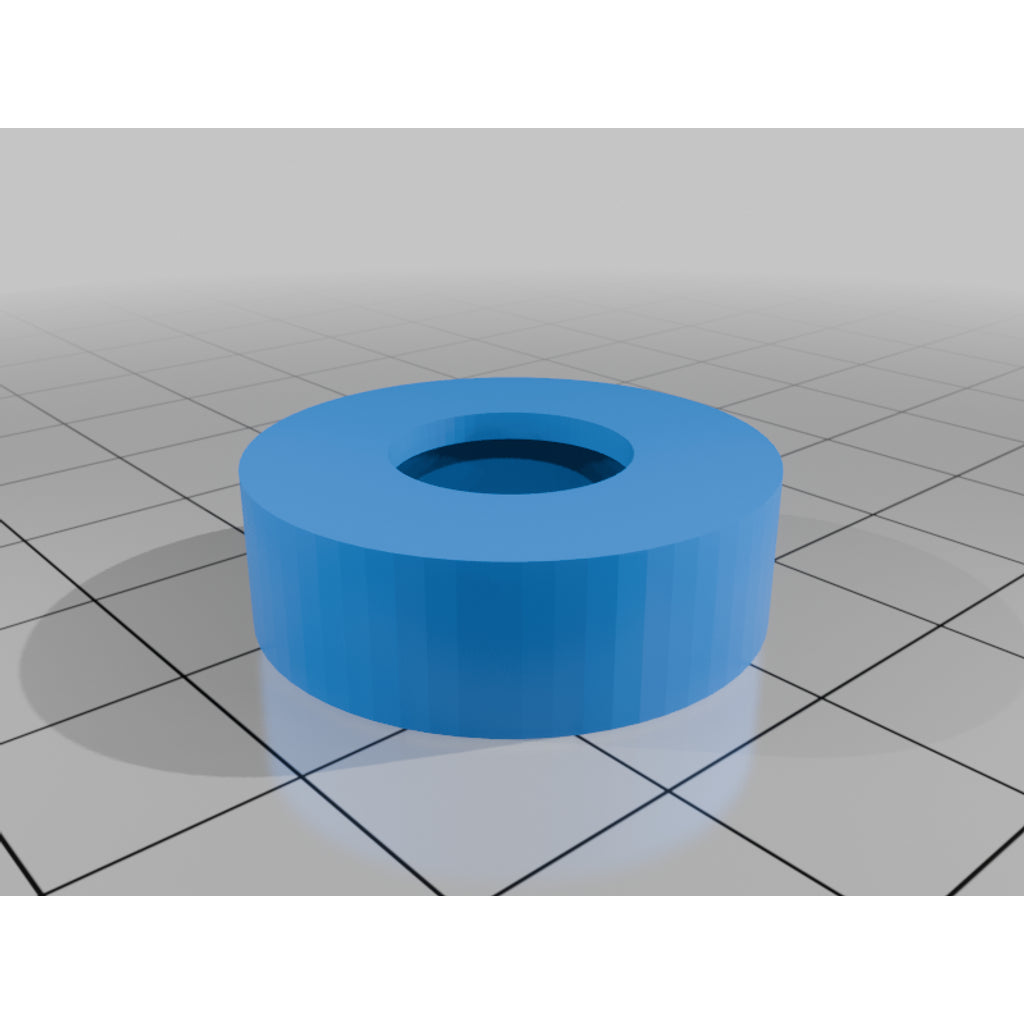

Spacers to allow you to clear the dowel pins when bolting the engine to an engine stand. NA and NB miata, 1.6 and 1.8.
100% infill. PETG. Lots of top layers, bottom layers, and wall thickness. Use some washers to help spread the load. Be careful and don't drop your engine. This is plastic after all.
Entire spacer thickness is 8mm.
Spacers for the dowel pins are 20mm holes that are 6.5mm deep (for a 19mm pin that's 6.25mm long... expect a little bit of squish and deformation when everything is torqued down).
Holes for the bolts are 12mm.
Use a stack of washers for the non-dowel bolts to keep everything even.
Yes i'm using the head bolts to mount the engine to the stand. They are the right length and thread for this.
Compatible vehicles
- 1989-2005 Mazda Miata NA/NB
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Engine Stand Spacers |
|---|---|
| Make | Mazda |
| Model | Miata |
| Year | 1989 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-d49d7a7b |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D printable car parts library.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
