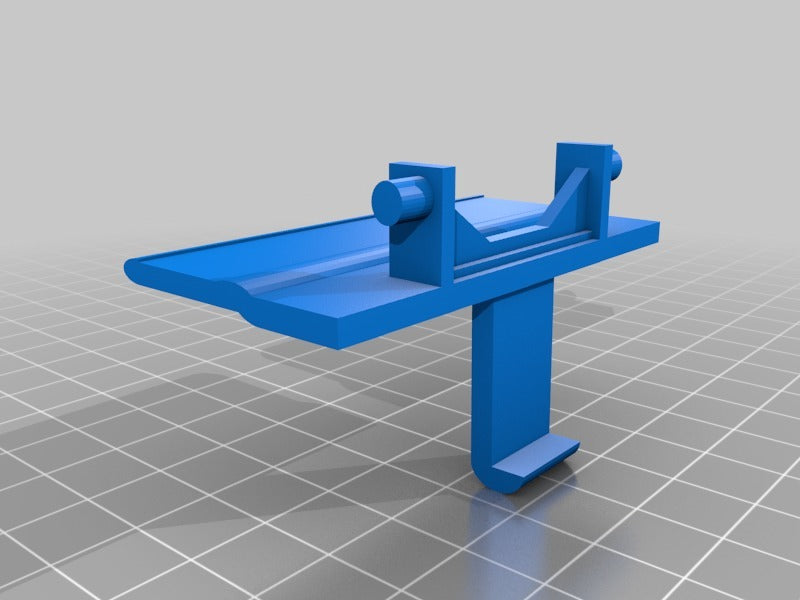

Ford F-150 Lid Latch for Center Console Armrest 2010-2015

3D printable ford f-150 lid latch for center console armrest 2010-2015 for the 2010 Ford F-150, 2011 Ford F-150, 2012 Ford F-150, 2013 Ford F-150, 2014 Ford F-150, 2015 Ford F-150: download the STL file and print an affordable replacement for a discontinued or expensive original part.

About this part

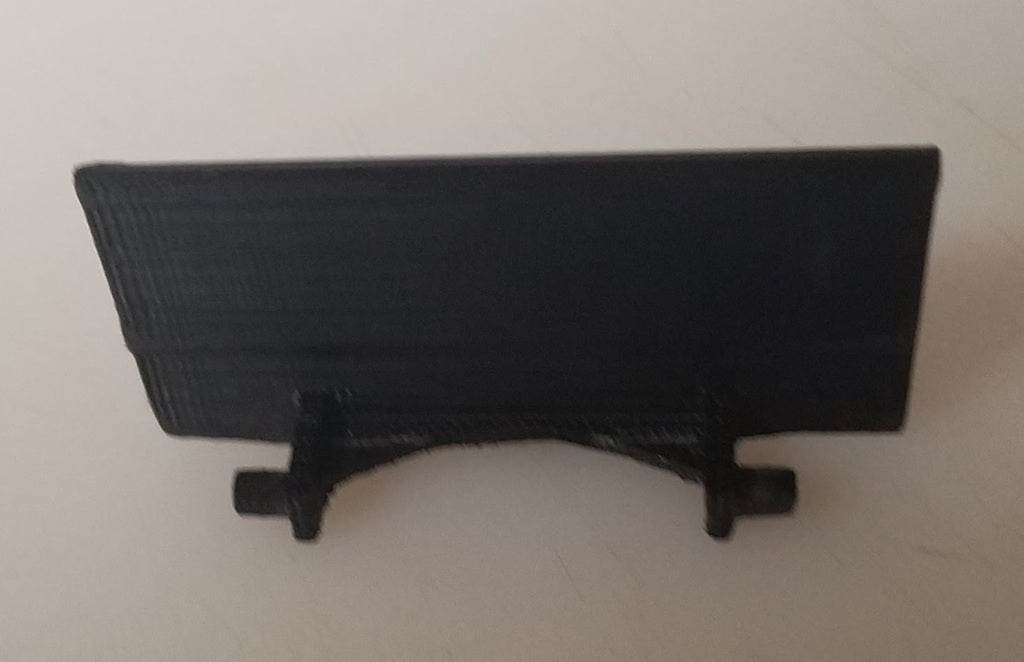

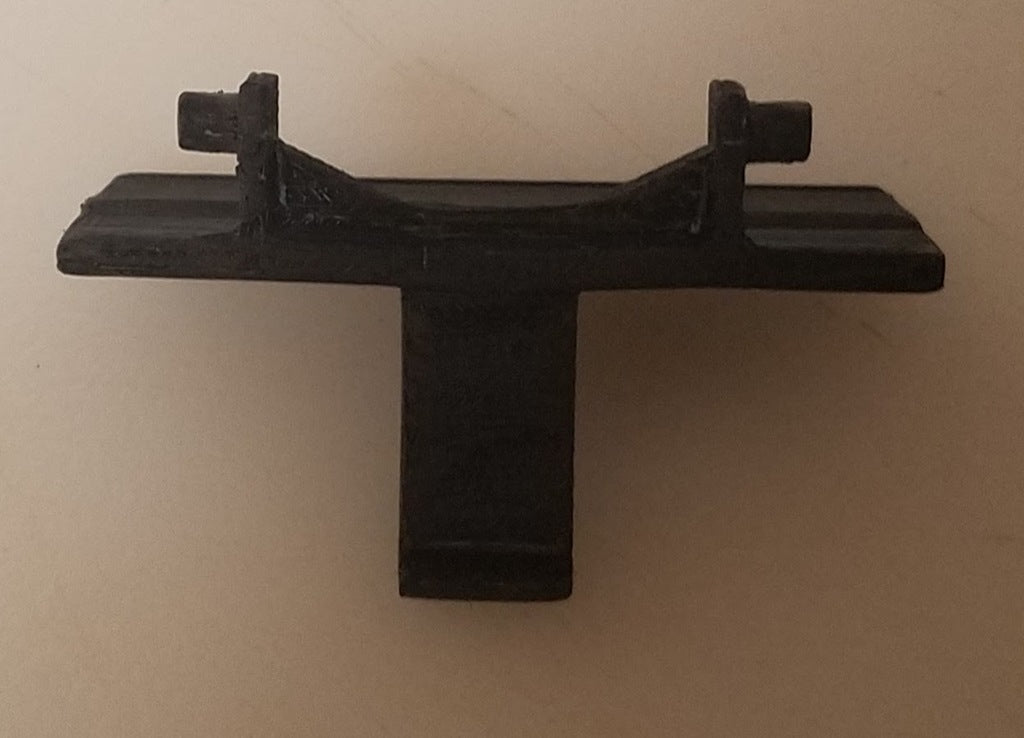

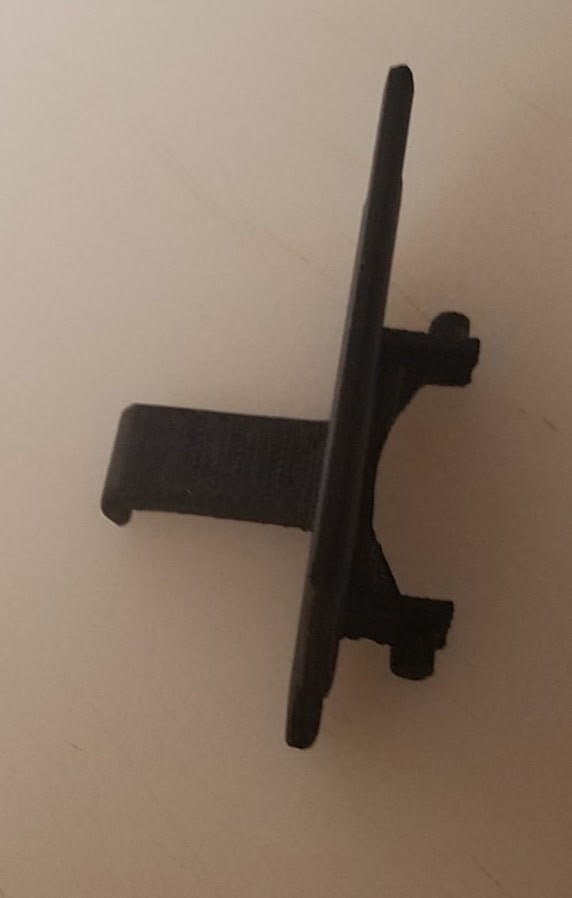

I broke my original latch on my 2012 F-150. I remixed this and made the pins braces a little narrower to make it easier to put in i also removed the 3d printed spring part and reinforced the pins instead this was still a very tight fit you might need to still sand the pins down shorter. might modify more if it breaks in future. A paper clip spring will work but If you have original spring, use that instead. attached is a youtube of how to install the latch i do not own this video. Print Settings Printer: Turnigy Fabrikator Rafts: Yes Supports: Yes Resolution:.2m Infill: 75% Notes: slice the print so the pins and latch are flat on the glass with supports touching build plate Post-Printing ============= print laying flat like this and make sure you have supports touching build plate lot of overhang in the latch part Category: Automotive.

Compatible vehicles

• 2010 Ford F-150, 2011 Ford F-150, 2012 Ford F-150, 2013 Ford F-150, 2014 Ford F-150, 2015 Ford F-150

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

More Ford parts

Browse all Ford replacement parts or search the full 3D printable car parts library.

Design credit: original design by Mobilemedic on Printables, licensed CC BY.
