Honda Forza 300 Box Clip – Universal Fit

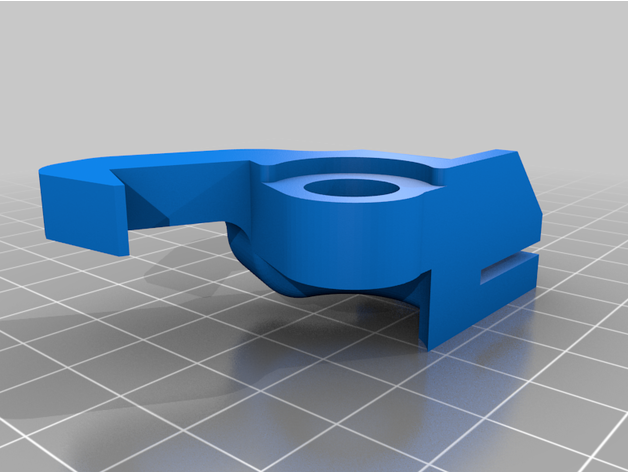

Replace a broken or missing honda forza 300 box clip on your car with this 3D printable part from PartsRemade.

About this part

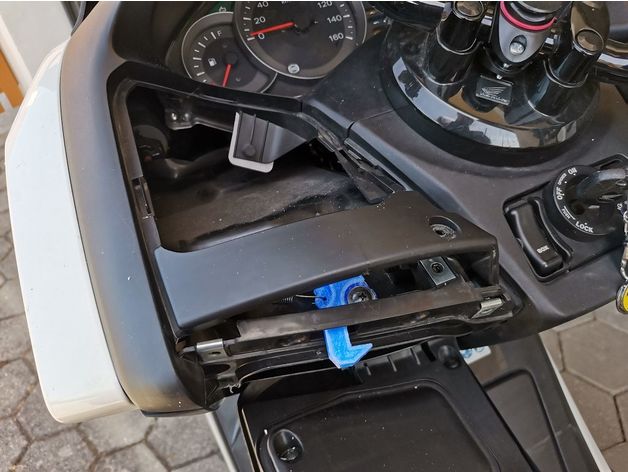

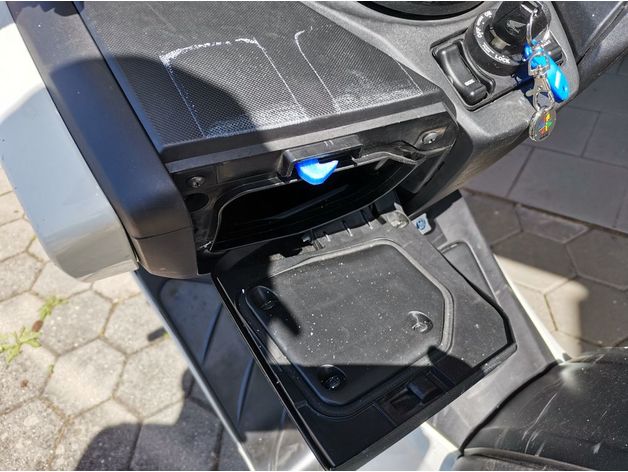

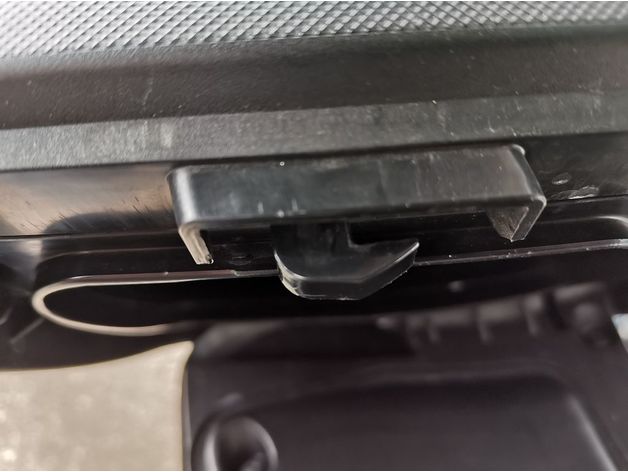

The Clip for the lockable Box on my Honda Forza 300 2018 was broken. Because i own a 3d printer, i decided to reprint the item instead of asking how much that would be from the retailer. The removal of the old part is either a bit tricky or a whole lot work. I decided to go the tricky way. I will add some Pictures of the repair. On the sixth Picture you see Version 1 of the Clip. It was 2mm too short so the box did not close. It is clearly visible with the fifth Picture of the original Clip from another similar model. Instructions on repair: 1.) remove the 2 screws of the black cover above the box on the front. 2.) remove the cover of the box (pull the front up and be carefull for the clip at the back of the cover) 3.) unscrew the 2 screws that are now visible under the removed cover. 4.) unscrew the 2 screws at the front besides the clip 5.) now you can lift the plastic up, you have to bend it and slide it out of the keycover. 6.) when you bend the frontplate around the clip forward you can now access the screw of the clip and unscrew it, remove the cable and the spring. 7.) finally remove the broken Clip for Installation just follow the reverse order of the steps above and enjoy a working Box!

Compatible vehicles

• Universal fit – check the measurements against your vehicle

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

Design credit: original design by Sebastian Mirnig on Thingiverse, licensed CC BY 4.0.
