Replace a broken or missing hvac vacuum actuator arm rivet on your 1985 Mercedes-benz W123 W123 with this 3D printable part from PartsRemade.
About this part

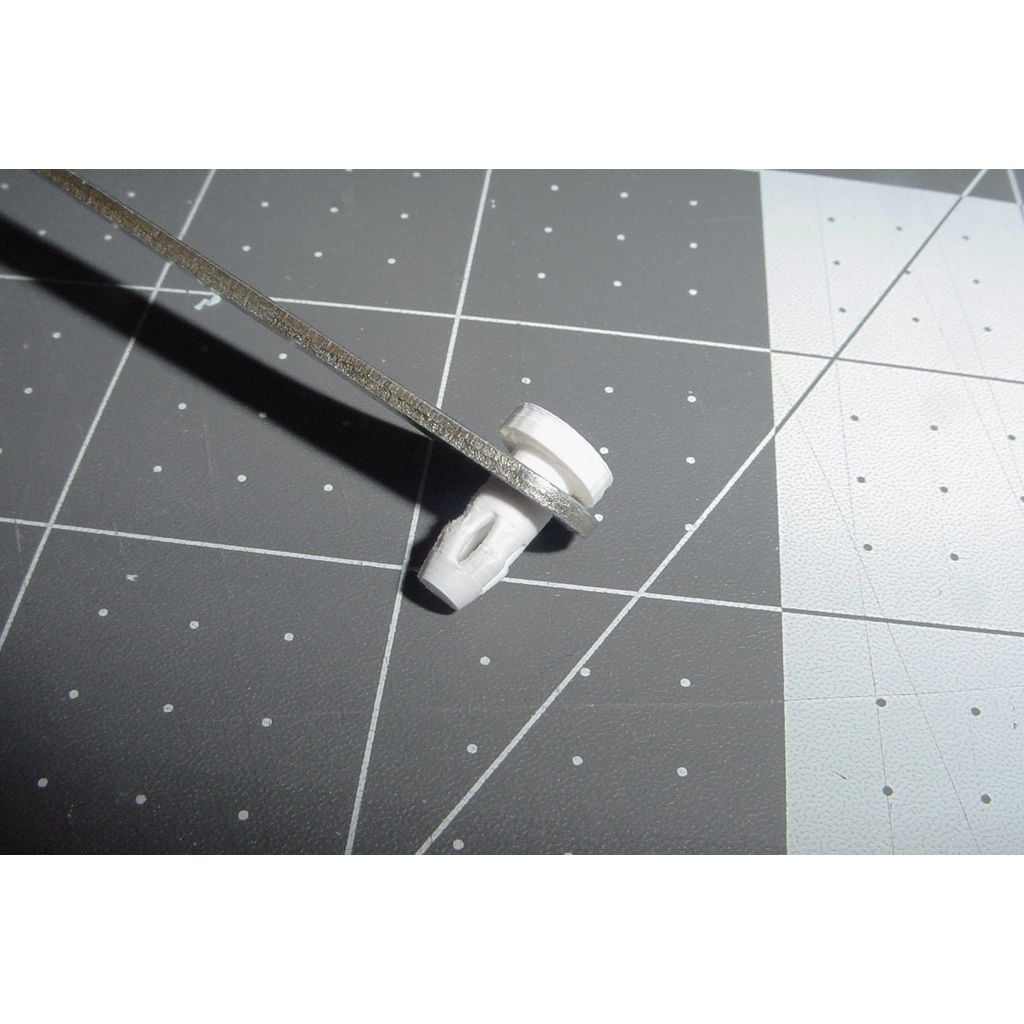

I made these little plastic rivets to replace the broken pins on the arms of my vacuum flap actuators on my Mercedes. These fit through the little hole on the end of the vacuum actuator arm. I could have used a screw but I wanted a more elegant solution similar to the original fastener.
I made two types. One with the expanding mushroom head. The other with a groove and C-clip. Both work well on my Main air flap behind my glove box on my 1985 Mercedes 300D. I had to drill out the existing plastic rivet that had broken apart. I used a 13/64" drill bit on the plastic arm to make a hole. It's roughly 5mm which is the nominal diameter of the pin and hole on the arm.
Compatible vehicles
- 1985 Mercedes-benz W123 W123
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Hvac Vacuum Actuator Arm Rivet |
|---|---|
| Make | Mercedes-Benz |
| Model | W123 |
| Year | 1985 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 3 (STL) |
| Part number | CAT-4396655a |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
