Replace a broken or missing miata coolant overflow tank relocation on your Mazda MX-5 with this 3D printable part from PartsRemade.
About this part

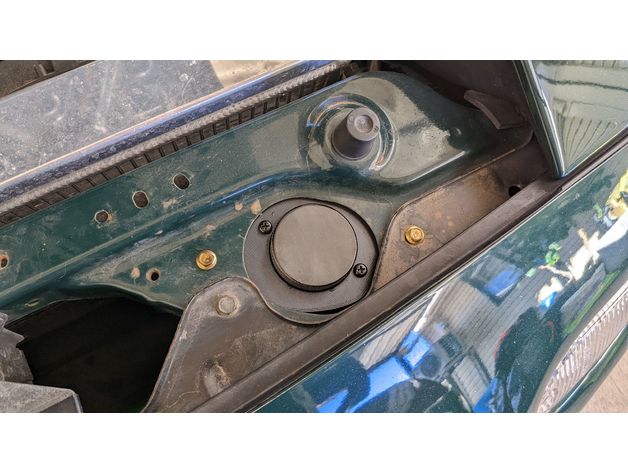

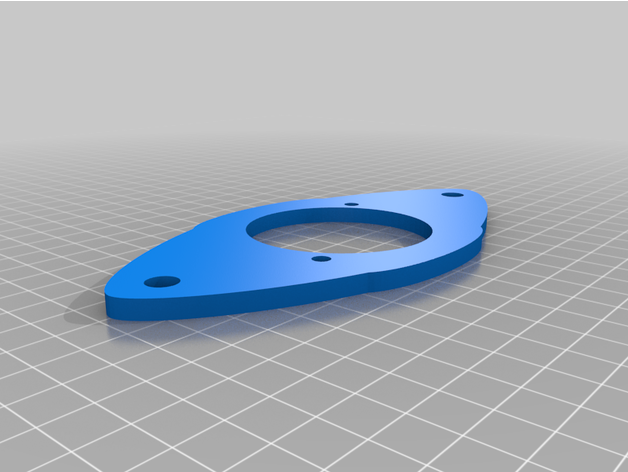

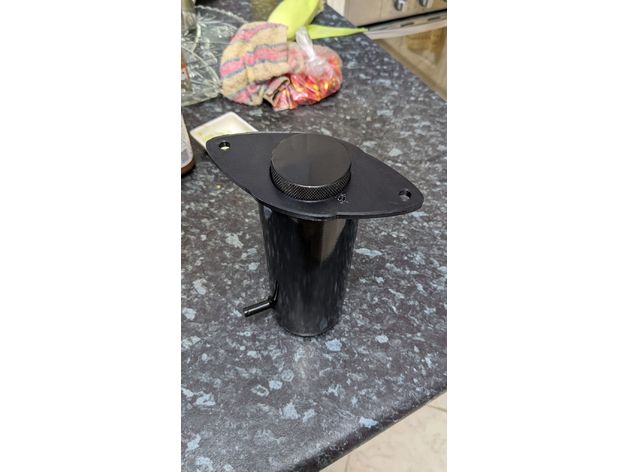

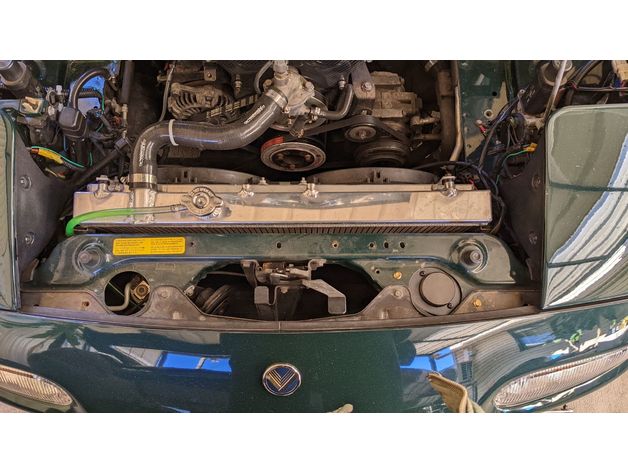

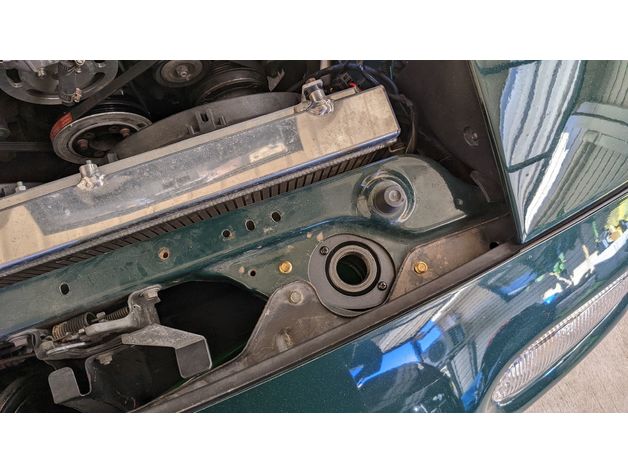

Bracket for relocation of the coolant overflow tank. This is mounted in front of the radiator. Overflow tank used: https://www.aliexpress.com/item/32802593422.html?spm=a2g0o.productlist.0.0.60821c4a4prQQv&algo_pvid=9ccb9c10-5b1c-48f3-b605-bac1a7395bd6&algo_exp_id=9ccb9c10-5b1c-48f3-b605-bac1a7395bd6-0&pdp_ext_f=%7B%22sku_id%22%3A%2264229065699%22%7D&pdp_npi=2%40dis%21AUD%21%2113.46%21%21%2119.96%21%21%400b0a555b16545606368813328e574f%2164229065699%21sea You will need to drill 2 holes on the top of the bottle and tap thread the holes in order to mount this bracket. You will also need to drill a hole higher up on the side of the bottle so it isn't pressurized and allow coolant to overflow out. Design was inspired from this video (you can also use it as a guide on how it is installed) https://www.youtube.com/shorts/uajPwgN4Z3k
Compatible vehicles
- Mazda MX-5
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Miata Coolant Overflow Tank Relocation |
|---|---|
| Category | Mechanical/Functional |
| Make | Mazda |
| Model | MX-5 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-P04611 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D printable car parts library.
Design credit: original design by Steven Nguyen on Thingiverse, licensed CC BY.
