Mud Guards Front – 2017-2026 Tesla Model 3
Mud Guards Front – 2017-2026 Tesla Model 3
Replace a broken or missing mud guards front on your 2017-2026 Tesla Model 3 with this 3D-printed part, produced to order by PartsRemade.
About this part

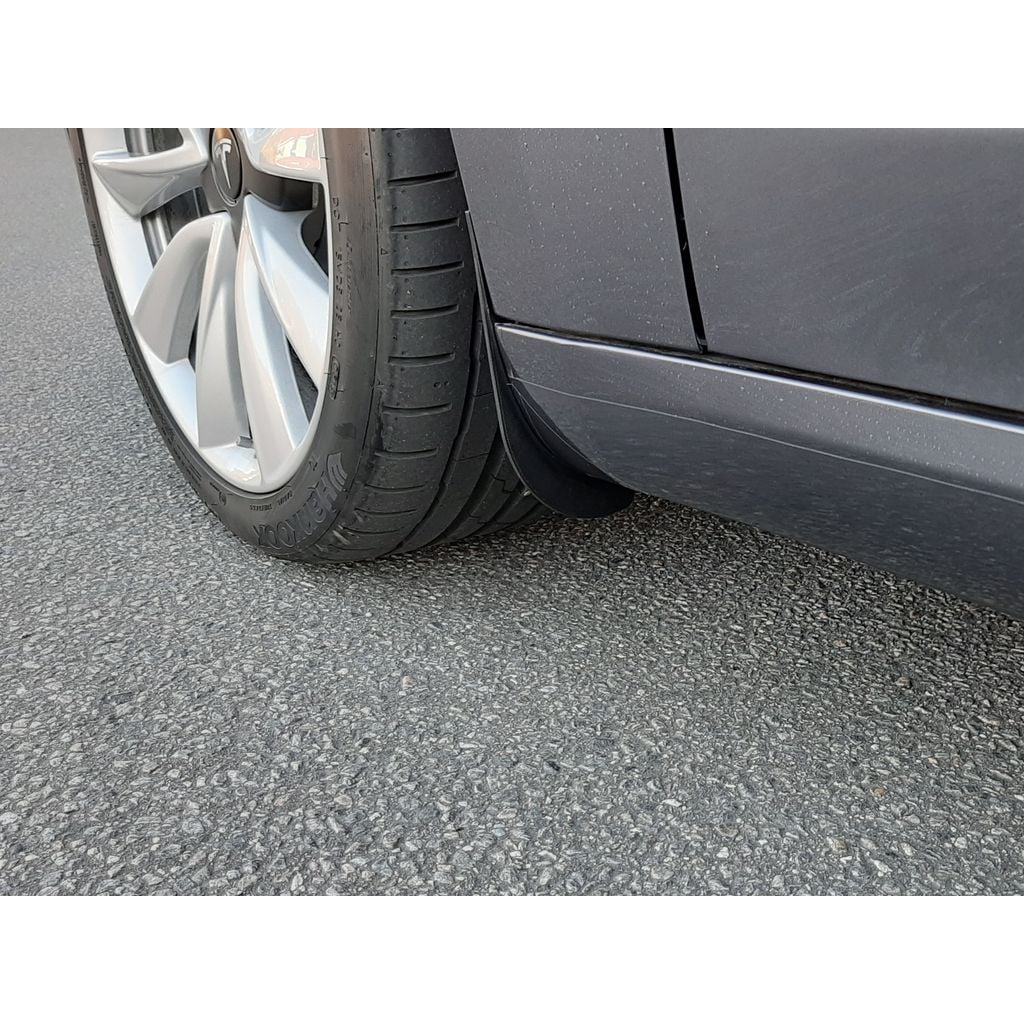

3D printed Mud guards for the Tesla Model 3 front wheels. Installation is very easy and takes only a few minutes. No drilling or other modifications is required.
Print the parts, remove any sharp edges, blobs or other imperfections and open up the hole for the push-in clip. Rub over the visble areas with a 3M Scotch Brite pad and plenty of water to obtain a nice matte finnish.
Hardware:
6 pc M3x8mm stainless screws (hex button head or hex socket head recommended), 6 pc stainless M3 nuts. Please note that the screw length must be exactly 8mm.
Tools:
Allan-key for the M3 screws and a flat screw-driver for the Tesla push-in rivet
Installation:
- Clean the area thoroughly, there must be no sand or dirt between the paint and the printed parts.
- Release and remove the Tesla plastic push-in rived using the flat screw-driver.
- Assemble the printed mud guard and the back plate. Let only a few threads on the M3 screws grip into the M3 nuts to make maximum slack between the two printed parts.
- Keeping some spacing between the printed parts, carefully slide the mud guard into position, the back-plate goes behind the steel lip.
- Adjust position.
- Reinstall the Tesla plastic push-in rivet.
- Fine adjust the position again if neccessary.
- Tighten the M3 screws.
Compatible vehicles
- 2017-2026 Tesla Model 3
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Mud Guards Front |
|---|---|
| Make | Tesla |
| Model | Model 3 |
| Year | 2017 |
| Production | 3D printed to order (FDM) |
| Design files | 5 (STL, STP) |
| Part number | CAT-02ccddfc |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Tesla parts
Browse all Tesla replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
