3D printable replacement privacy shelf retaining pin made for the 2012-2018 Ford Focus C346 (Hatchback): download the STL file and print a replacement for a cracked, lost or hard-to-find original part.
About this part

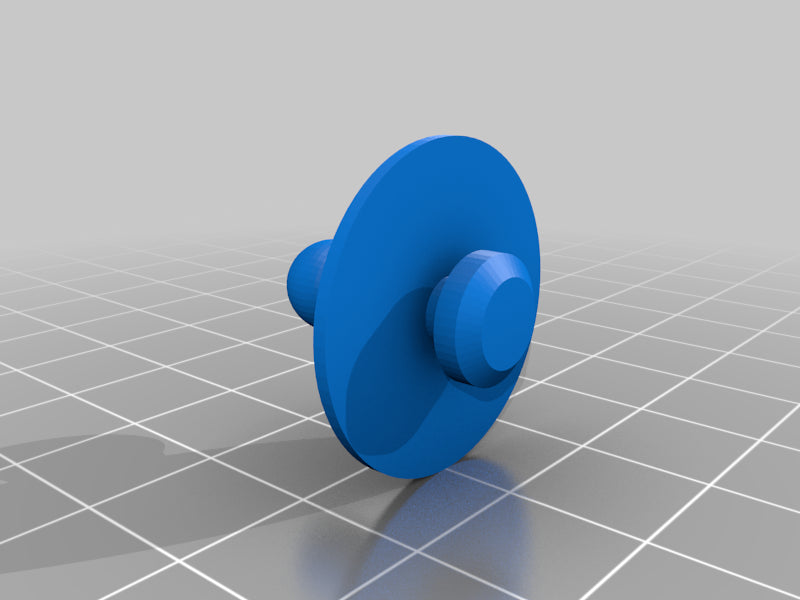

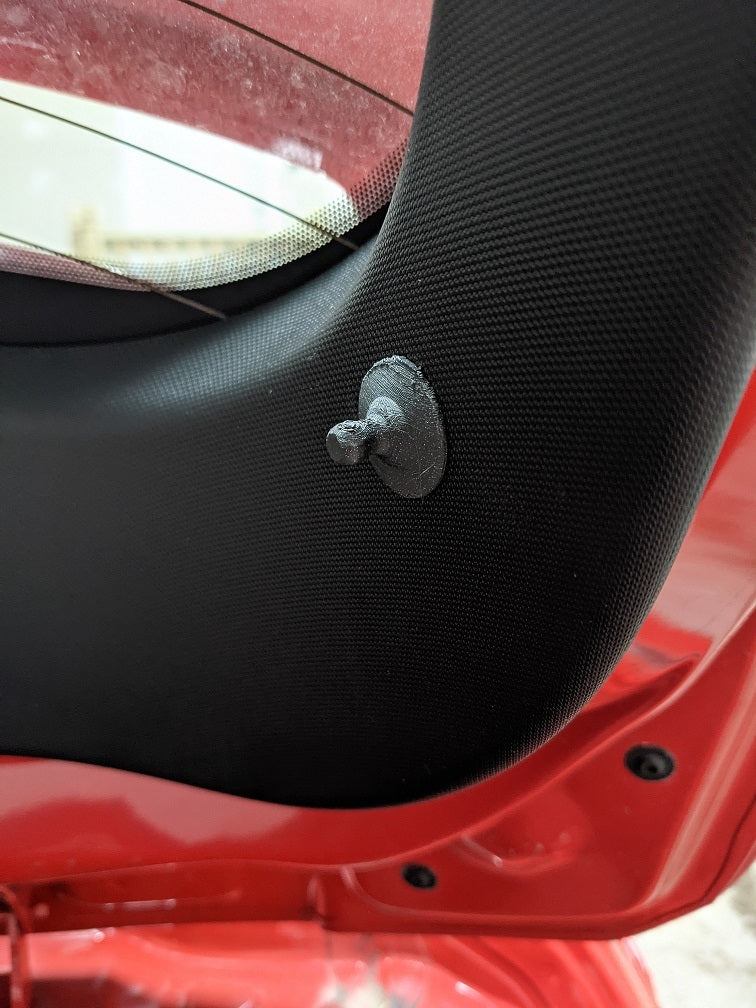

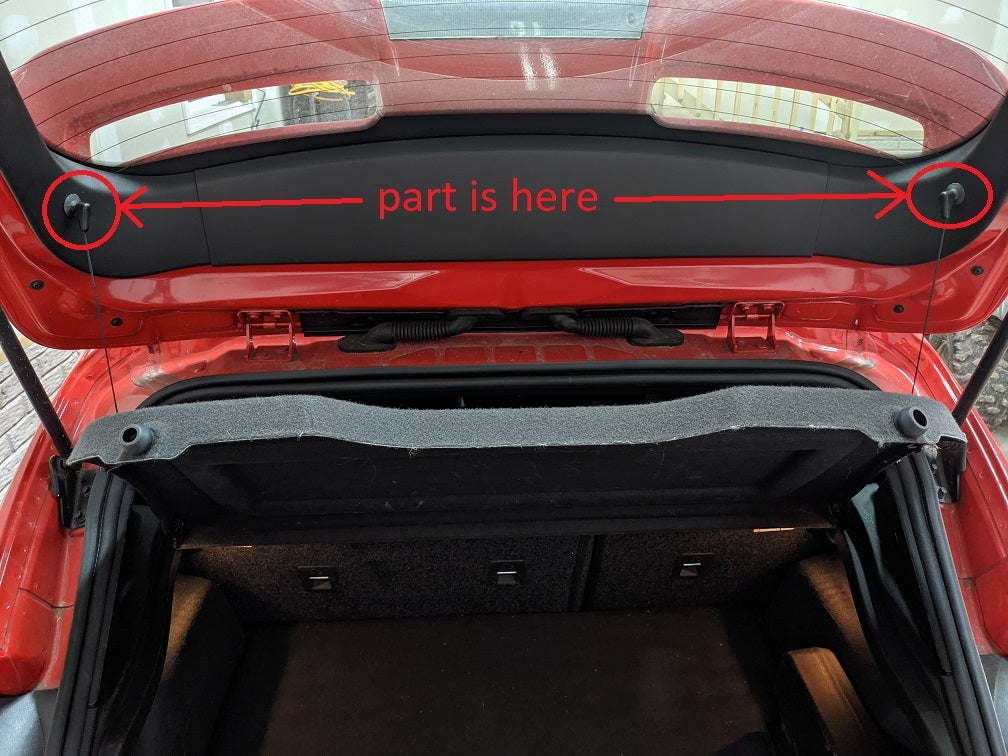

This is a part used in Ford Focus hatchbacks (C346 from model years 2012-2018) to connect the privacy shelf to the rear hatch/door. The equivalent OEM part number is DV6Z-58519A16-AA. Instead of paying $10 each to buy them from a dealership you can print them yourself for less than $0.10.

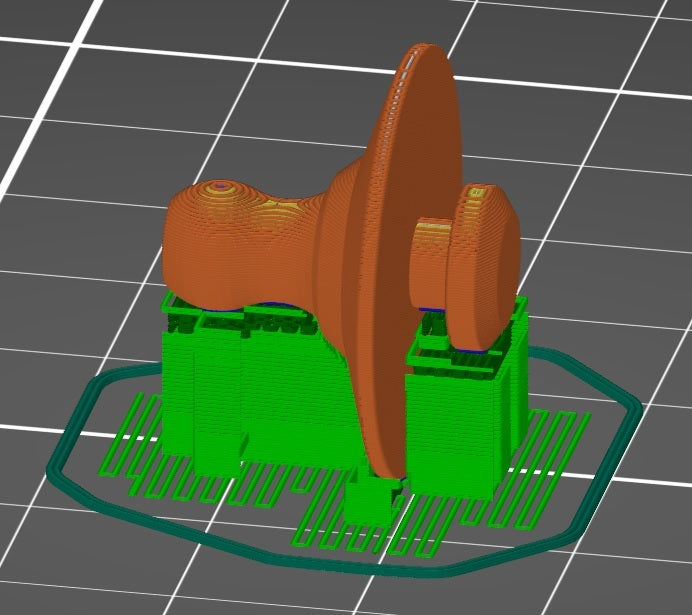

I recommend printing the part "laying down" with supports as shown in the picture. The shape will be a little rougher than printing the part standing up, but it will be much stronger against the shear loading it experiences while on the vehicle.

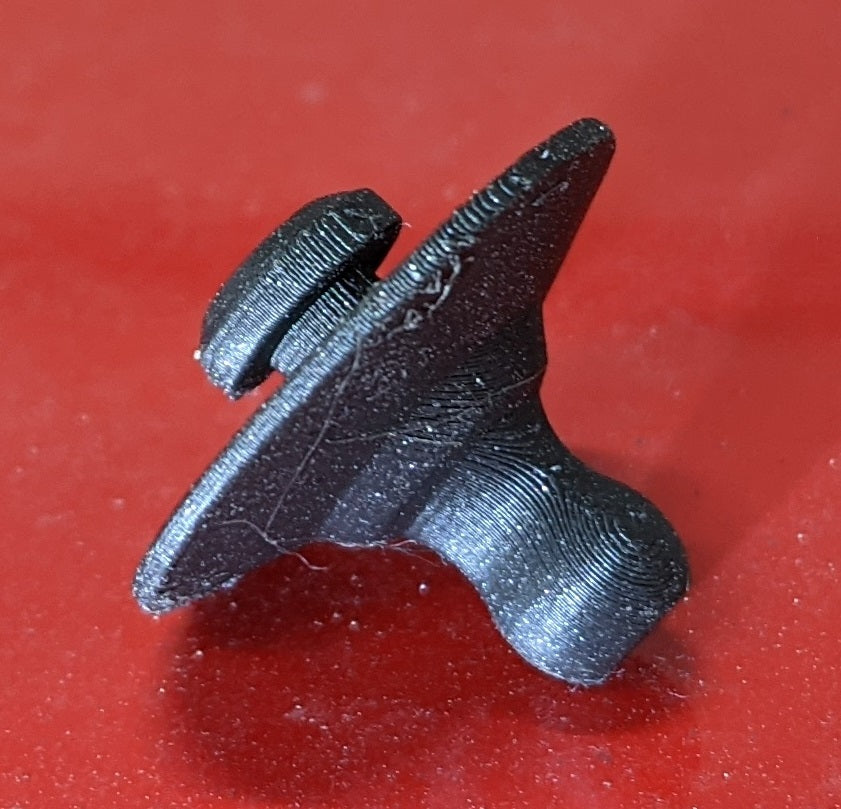

I used ASA, but PLA or ABS should also work. I printed one at 0.1 mm resolution and one at 0.2 mm resolution. The one with 0.1 mm resolution feels like it has a better fit with the mating part.
Compatible vehicles
- 2012-2018 Ford Focus C346 (Hatchback)
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Privacy Shelf Retaining Pin |
|---|---|
| Make | Ford |
| Model | Focus |
| Year | 2012 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-e3eccaf5 |
Print settings
No special print instructions provided.
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
