Square Hole Bumper Panel Holder – Volkswagen Golf

Replace a broken or missing square hole bumper panel holder on your Volkswagen Golf with this 3D printable part from PartsRemade.

About this part

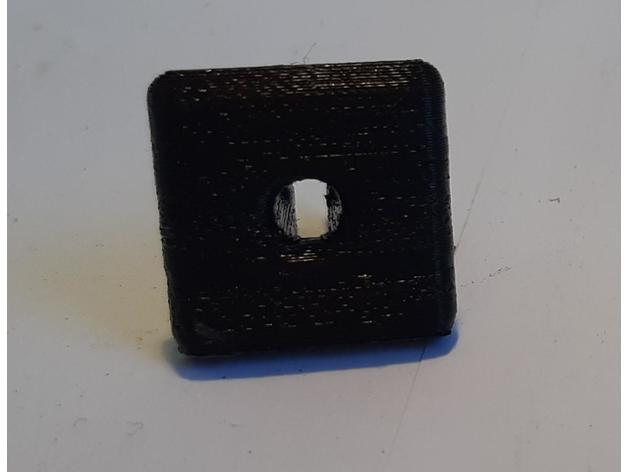

This clip (or a slightly similar version of it) was missing on my Golf 7 R's rear bumper after being repaired. I'm sure it should be applicable where panels are being fit into other square 8mm holes. The flange is square 20mm. You need to rotate it 90 degrees so that the clip inserts print horizontally with the flatter side at the bottom - sorry, I don't know how to rotate it in Fusion 360, but is easy enough to rotate in your slicer. I've tested these with the universal Volkswagen 25-Hex screws which are usually used for the wheel arch inner liners as I had many spare. The hole is 4.5mm in diameter and 3mm at the tip, to flare open as the screw progresses. Should also work with other similar 4-5mm self-tapping screws. NB print with at least 5 outer layers in your slicer as this would provide the linear strength of the legs - even though the slicer won't adequately slice 5 lines everywhere, you need the legs' plastic to be continuously extruded to the flange.

Compatible vehicles

• Volkswagen Golf

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

More Volkswagen parts

Browse all Volkswagen replacement parts or search the full 3D printable car parts library.

Design credit: original design by Dieter van der Westhuizen on Thingiverse, licensed CC BY.
