Subaru Sliding Armrest Latches
Subaru Sliding Armrest Latches
3D printable subaru sliding armrest latches for the Subaru: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

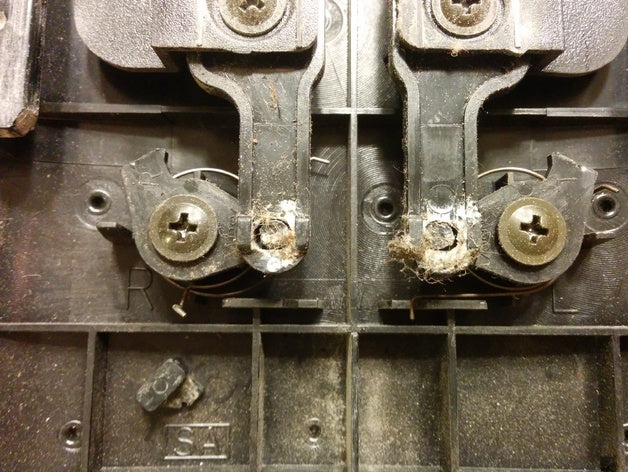

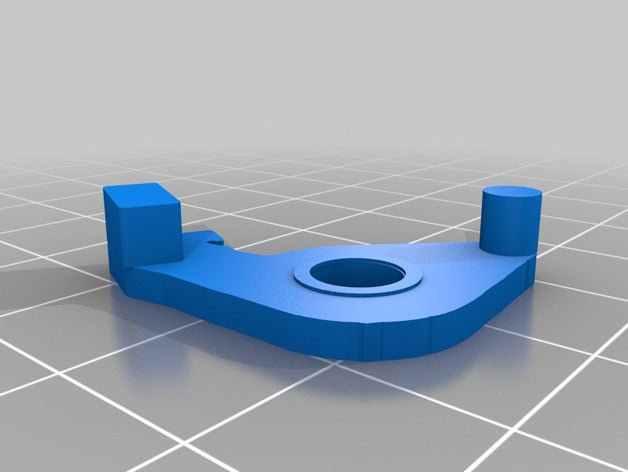

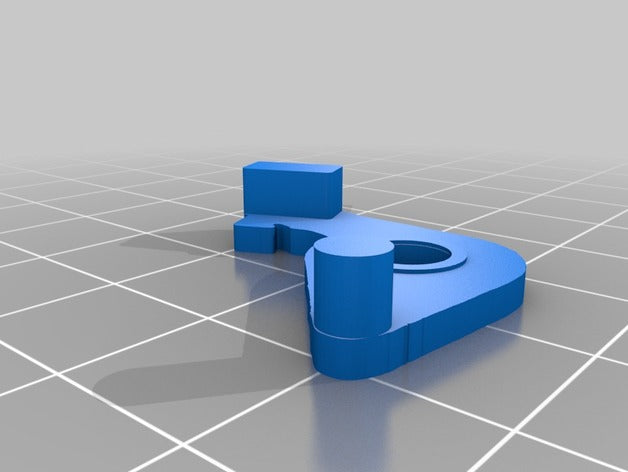

These were a quick hack to fix the broken latches on sliding armrest of my 2007 Subaru Forester. Probably the same parts used on Imprezas from that era. I didn't have a new latch to model, but found the broken hook of one of mine, 2D scanned both parts pushed together, converted to SVG, extruded, and then added the post and hook in 123D. You'll want to print in ABS or PETG, PLA will not likely be strong enough. Also, the hole is slightly undersized, so drill with a 6.5mm bit for a perfect fit. You may also need to file the spring retainer slot a bit to positively capture the spring. Seems to work pretty good on my car, time will tell how long they hold up before I need to print some more.
Compatible vehicles
- Subaru
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Subaru Sliding Armrest Latches |
|---|---|
| Category | Interior |
| Make | Subaru |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 2 (STL) |
| Part number | CAT-P03167 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Subaru parts
Browse all Subaru replacement parts or search the full 3D printable car parts library.
Design credit: original design by Chris Tersteeg on Thingiverse, licensed CC BY.
