Toyota 4 Cylinder Engine 22RE, Complete Working Model
Toyota 4 Cylinder Engine 22RE, Complete Working Model
3D printable toyota 4 cylinder engine 22re, complete working model made for the Toyota: download the STL file and print a replacement for a cracked, lost or hard-to-find original part.
About this part

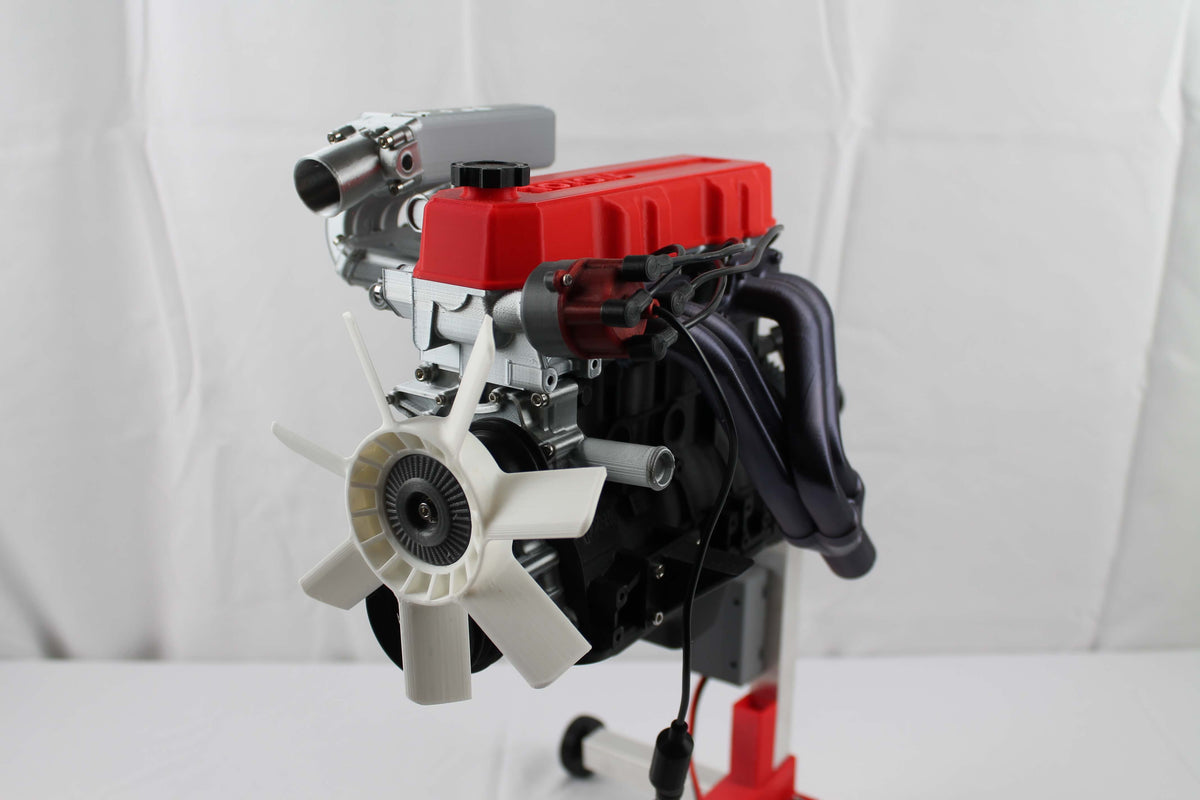

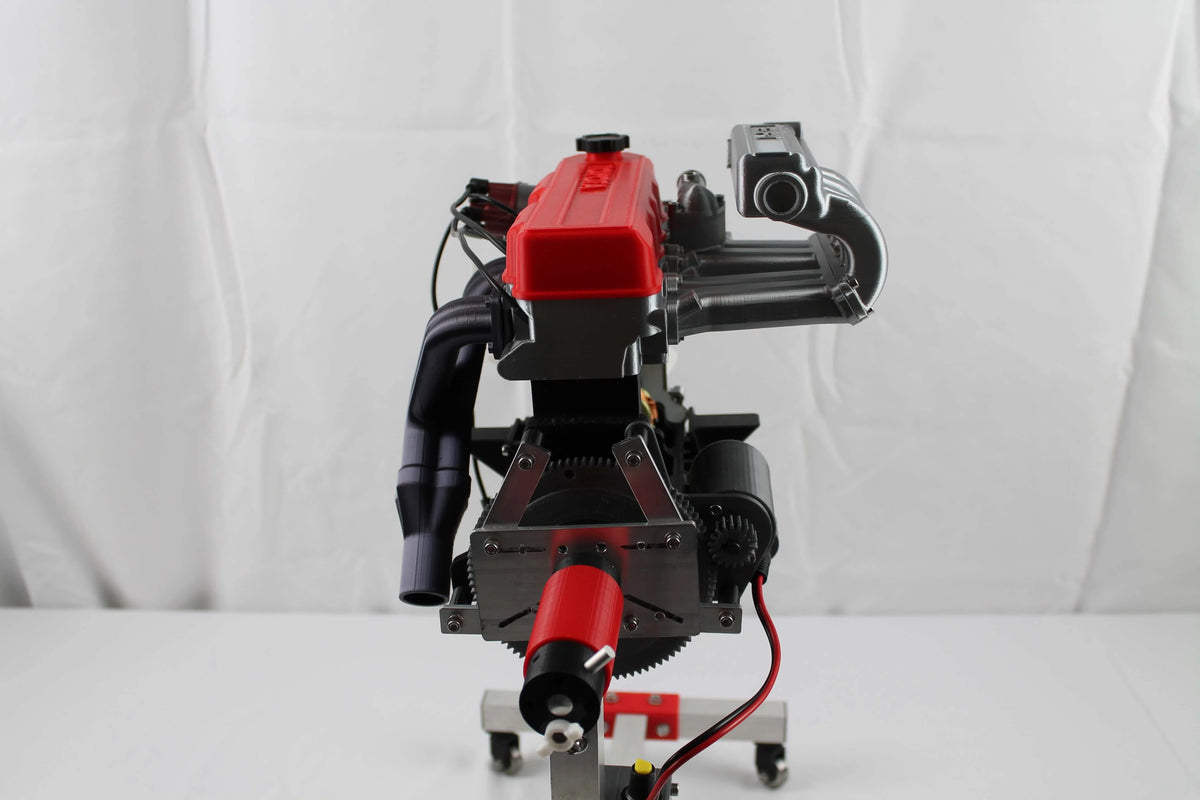

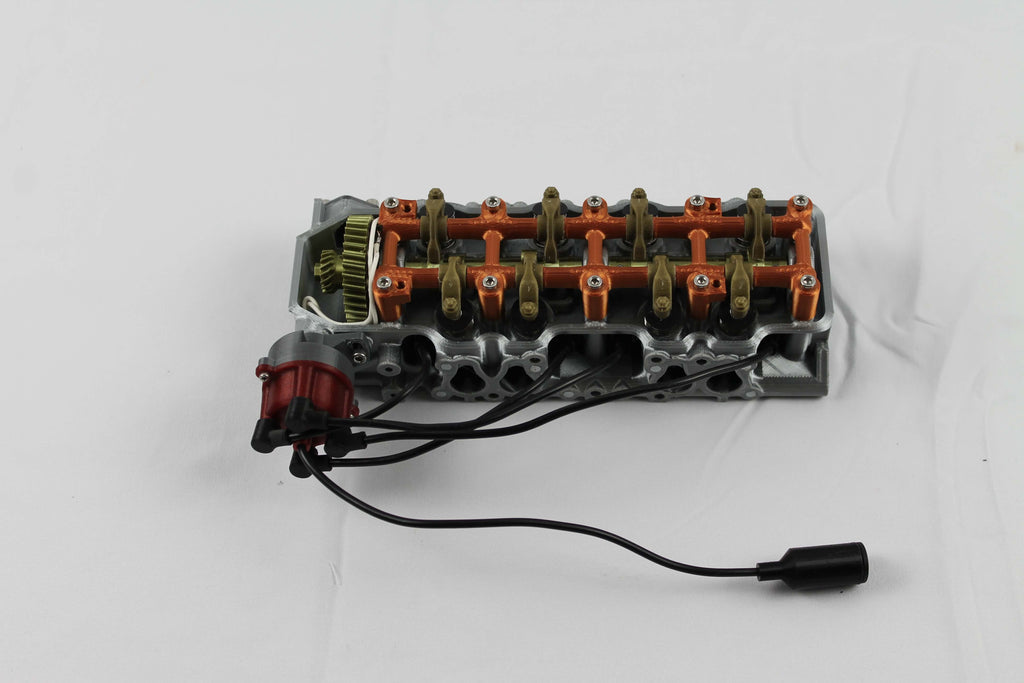

Complete hardware kits that include all the non-printed parts can be found over at MakerRx Completely reverse engineered Toyota 22RE 4 cylinder engine. Can completely print a fully rotating model. Working crank, pistons, and valve train. The valves open and close!!!. It may not be the most exciting engine but its the only one I had in my garage. Great if you want to learn about engines and how the moving parts in them work. All parts are printed except for a few bearings and fasteners. More than 3 days of total print time. The block alone was 34 hours. So make sure you have a well calibrated and reliable printer. Some print times calculated in Cura at .2mm layer height.
Compatible vehicles
- Toyota
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Toyota 4 Cylinder Engine 22RE, Complete Working Model |
|---|---|
| Category | Mechanical/Functional |
| Make | Toyota |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 23 (STL) |
| Part number | CAT-P04874 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Toyota parts
Browse all Toyota replacement parts or search the full 3D printable car parts library.
Design credit: original design on Thingiverse, licensed CC BY.
