Need a replacement toyota engine oil funnel for your Toyota? This 3D model lets you print a replacement for a broken, worn or missing original piece.
About this part

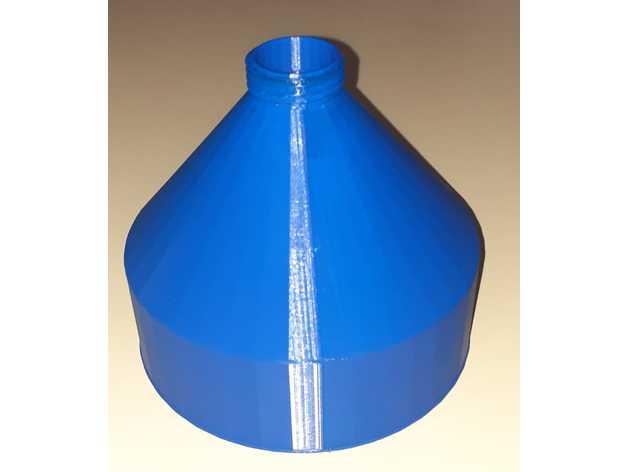

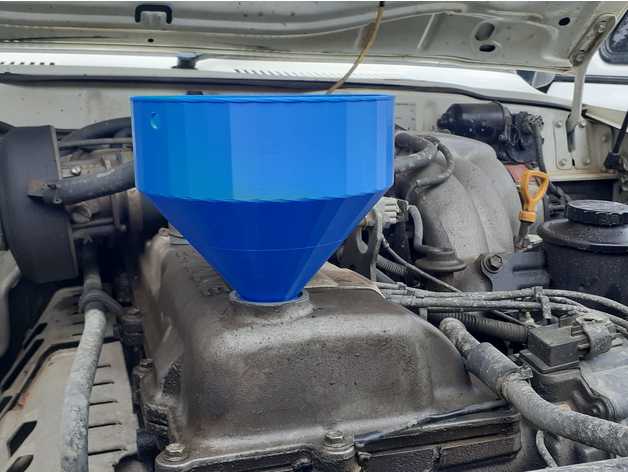

Due to the baffle plate under the rocker cover, a regular funnel does not sit well in a Toyota 1FZ-FE engine as found in Land Cruiser 80 and 100 models. This funnel screws intro the thread of the rocker cover to leave 2 hands free for pouring. Note you may be able to purchase one of these in a nearby store, I decided to design and print one instead. I am sure this will fit in other Toyota engines. The thread pitch is 3mm, with outer diameter 37mm and base diameter of 33mm. If your oil filler cap matches it should fit your engine. I will add notes of what fits as I get feedback.
Compatible vehicles
- Toyota
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Toyota Engine Oil Funnel |
|---|---|
| Category | Mechanical/Functional |
| Make | Toyota |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-P04880 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
