3D printable watertight connector terminal shell for the 1982-2006 Bmw 3 Series E30, E36, E46: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

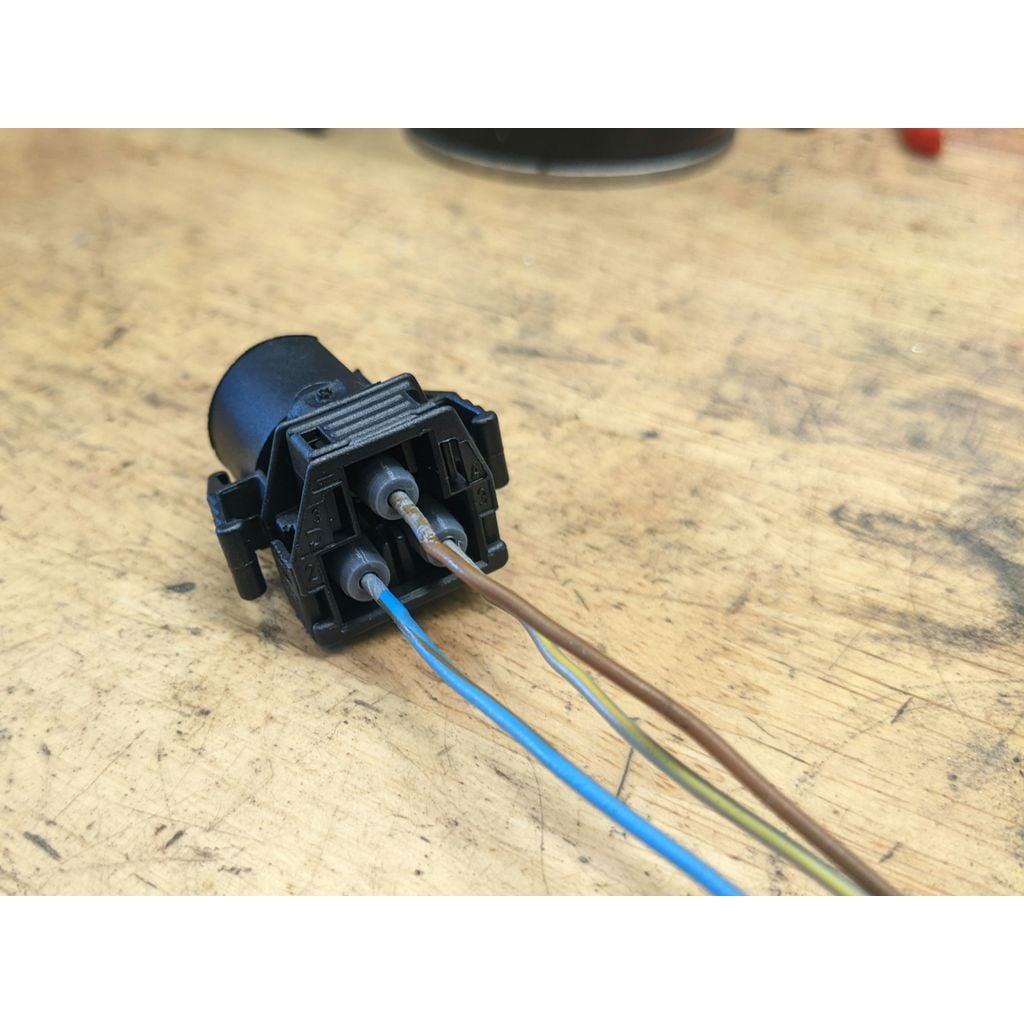

Repair those old connectors commonly found on BMW E30, E36, and E46 vehicles with loose terminals. The rubber overmolding on the terminals tends to disintegrate which can cause them to fall out of the housing or not make a good connection.
This replacement terminal shell is designed as two pieces and fits tightly over the terminal after the old overmolding is stripped off. Apply a small amount of silicone RTV to the terminal first to glue the shell in place and make the connection waterproof.
Print both pieces vertically to ensure that they are perfectly circular.
Compatible vehicles
- 1982-2006 Bmw 3 Series E30, E36, E46
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Watertight Connector Terminal Shell |
|---|---|
| Make | BMW |
| Model | 3 Series |
| Year | 1982 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 6 (STEP, STL) |
| Part number | CAT-20b73728 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
