Window Guide Bushing – 1998-2005 Mazda MX-5 Miata NB
Window Guide Bushing – 1998-2005 Mazda MX-5 Miata NB
3D printable window guide bushing for the 1998-2005 Mazda Mx-5 Miata NB: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

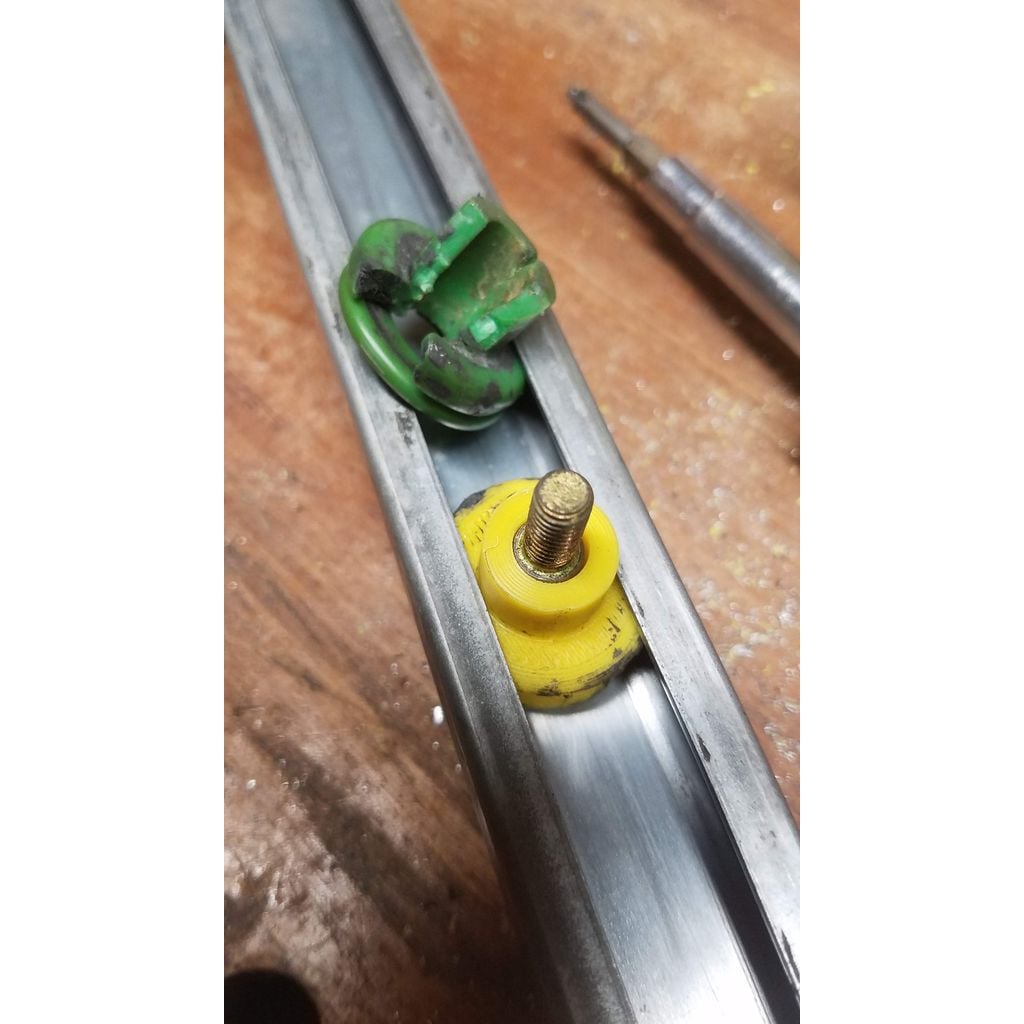

printed this out to use as a replacement for the broken Green Guide bushing that is in the rail at the back of the door.
Installed and seems to work fine, printed in ABS at .15mm layer height.
Printed 10-22-2020, I'll post when it breaks, should be fine.
Compatible vehicles
- 1998-2005 Mazda Mx-5 Miata NB
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Window Guide Bushing |
|---|---|
| Make | Mazda |
| Model | MX-5 Miata |
| Year | 1998 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-61a77305 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D printable car parts library.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
