Awning Brackets for Lexus GX 460 Stock Roof Rails – Universal Fit
Awning Brackets for Lexus GX 460 Stock Roof Rails – Universal Fit
Replace a broken or missing awning brackets for lexus gx 460 stock roof rails on your car with this 3D printable part from PartsRemade.
About this part

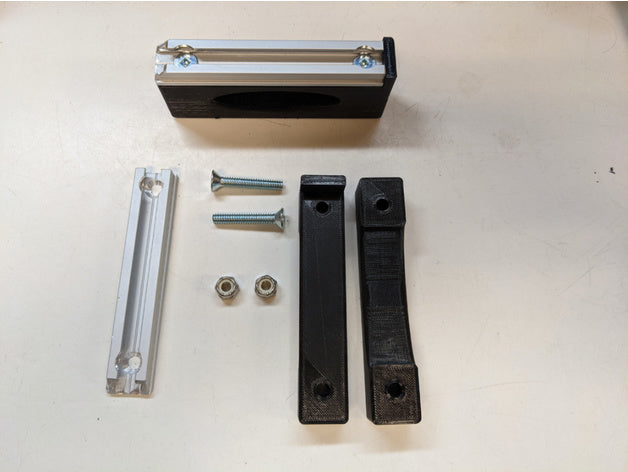

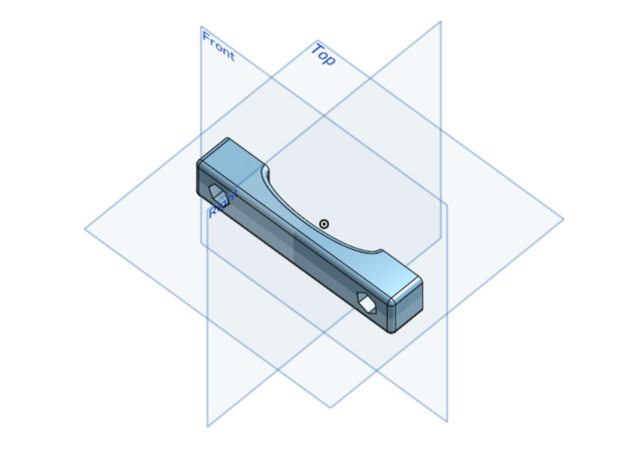

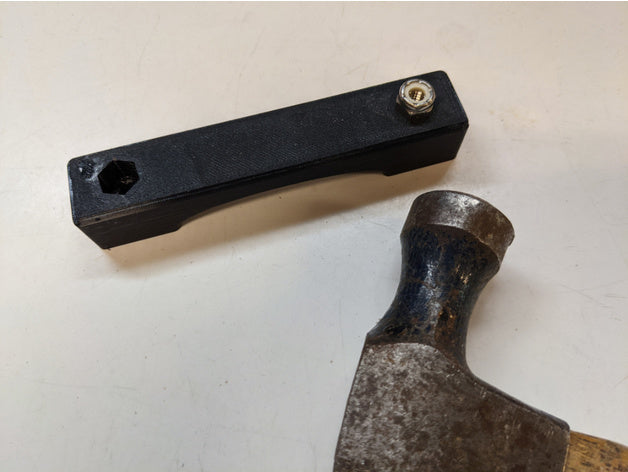

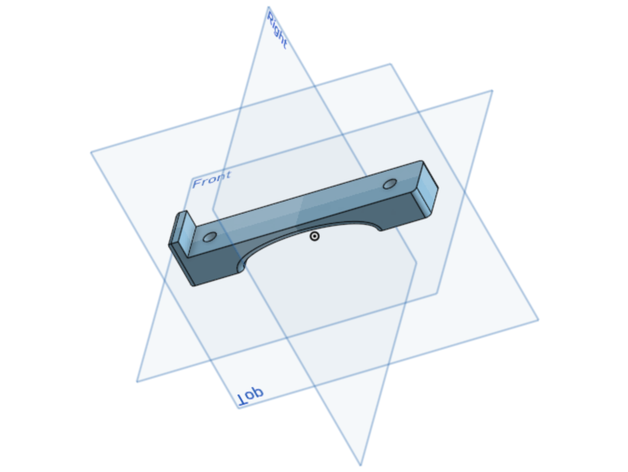

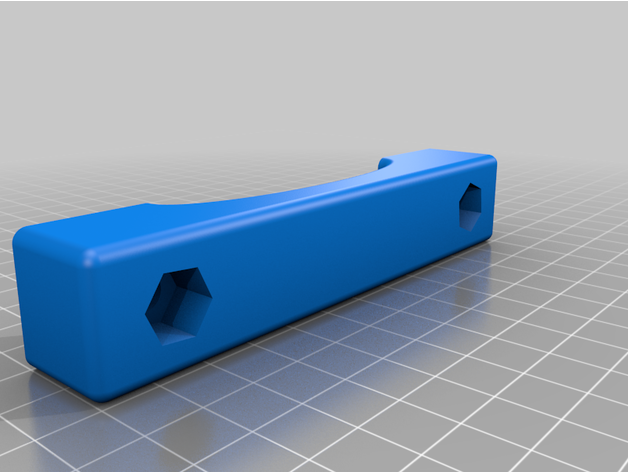

I wanted to mount a roof awning on my Lexus GX 460 using the stock aero type cross bars. Using these brackets along with aluminum T-slot channel results in an adjustable clamp. The T-channel needs the holes counter sunk to accept a 1/4"x20 - 1.5" long flat head bolt, the bolt heads should sit flush with the bottom of the channel to allow the T-slot bolts to slide in. I used ARB awning bracket with gusset, part number 813402 to mount the Shady Boy awning. This system allows the awning to be easily and quickly installed or removed. You will need 4 brackets, 2 for each crossbar. The 1/4" nuts are a tight fit and will need to be tapped in with a hammer. The awning is attached using 1" long T-slot bolts (one in each bracket) and a star wheel or quick nut. The brackets also fit gen 4, 4Runner and will probably will fit other models, please let me know if these fit your crossbars. Material list 4 - 114mm long T-channel 4 - 1/4"-20 by 1" T-blots 4 - 1/4"-20 star wheel / quick nuts 8 - 1/4"-20 flat head bolts 8 - 1/4"-20 nylock nuts Links to products used: https://www.shadyboy.com/ https://www.amazon.com/ARB-813402-Bracket-Pre-Drilled-Gusseted/dp/B071G3V8MF?th=1 https://www.leevalley.com/en-ca/shop/hardware/jig-and-fixture-parts/52400-veritas-double-t-slot-track https://www.leevalley.com/en-ca/shop/hardware/jig-and-fixture-parts/100804-t-bolts-for-veritas-t-slot-tracks-5-16-18-thread https://www.amazon.com/POWERTEC-71121-Piece-T-Bolt-Kit/dp/B079JN1DSK/ref=pd_sbs_6/145-1527334-2258646?pd_rd_w=Lc3L8&pf_rd_p=3676f086-9496-4fd7-8490-77cf7f43f846&pf_rd_r=TC0AE0P5RM83VVHWVNCT&pd_rd_r=28f1d5b7-bc9c-4982-9b46-87275b52d32c&pd_rd_wg=F1yCb&pd_rd_i=B079JN1DSK&psc=1
Compatible vehicles
- Universal fit – check the measurements against your vehicle
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Awning Brackets for Lexus GX 460 Stock Roof Rails |
|---|---|
| Category | Exterior |
| Make | Universal |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 2 (STL) |
| Part number | CAT-P01961 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
Design credit: original design by Ian Giles on Thingiverse, licensed CC BY.
