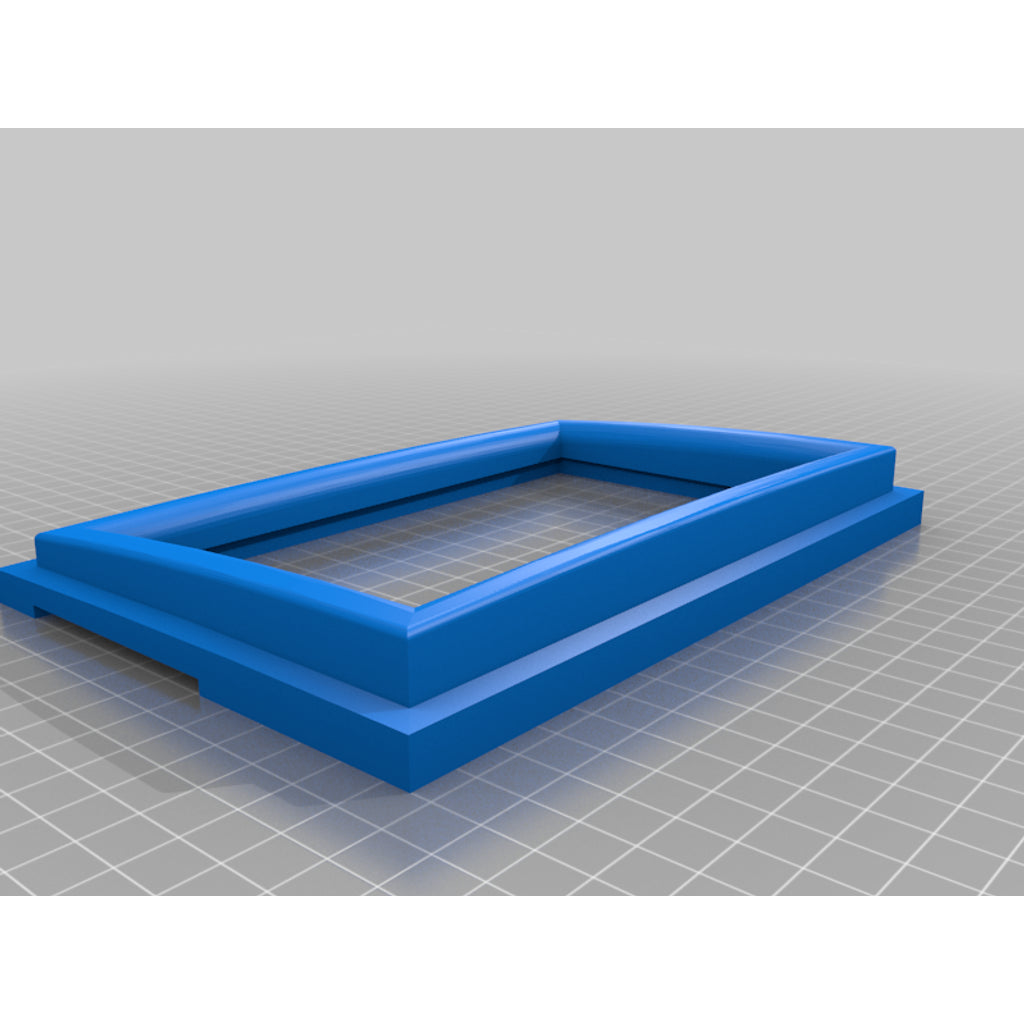

Double Din Radio Dash Bezel – 2004-2008 Ford F-150 (Double Din)
Double Din Radio Dash Bezel – 2004-2008 Ford F-150 (Double Din)
3D printable replacement double din radio dash bezel made for the 2004-2008 Ford F-150 (Double Din): download the STL file and print a replacement for a cracked, lost or hard-to-find original part.
About this part
Created for Raspberry Pi Head Unit for 2004-2008 Ford F-150 Double Din.
Designed to fit the following LCD Touch Screen:
UCTRONICS 7 Inch IPS Touch Screen for Raspberry Pi 4, 1024×600 Capacitive HDMI LCD Touchscreen Monitor Portable Display.
https://www.amazon.com/gp/product/B07VWDDWQ9/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1
Printing:
My 3D printer is a Creality Ender 3 V2.
Portable Version Cura Settings:
1. Hatchbox PLA 3D. 1.75 mm.
2. 15% fill
3. 4 Top/Bottom layers
4. 200 degress printer head
5. 50 degress printer bed.
6. Support Yes
Head Unit Version.
1. OVERTURE PETG 1.75 mm
2. 15% fill
3. 4 Top/Bottom layers
4. 250 degress printing
5. 85 degress build plate.
Compatible vehicles
- 2004-2008 Ford F-150 (Double Din)
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Double Din Radio Dash Bezel |
|---|---|
| Make | Ford |
| Model | F-150 |
| Year | 2004 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 4 (STL) |
| Part number | CAT-aca63b39 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Ford parts
Browse all Ford replacement parts or search the full 3D printable car parts library.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
