3D printable working 5 speed transmission model for toyota 22re engine made for the Toyota: download the STL file and print a replacement for a cracked, lost or hard-to-find original part.
About this part

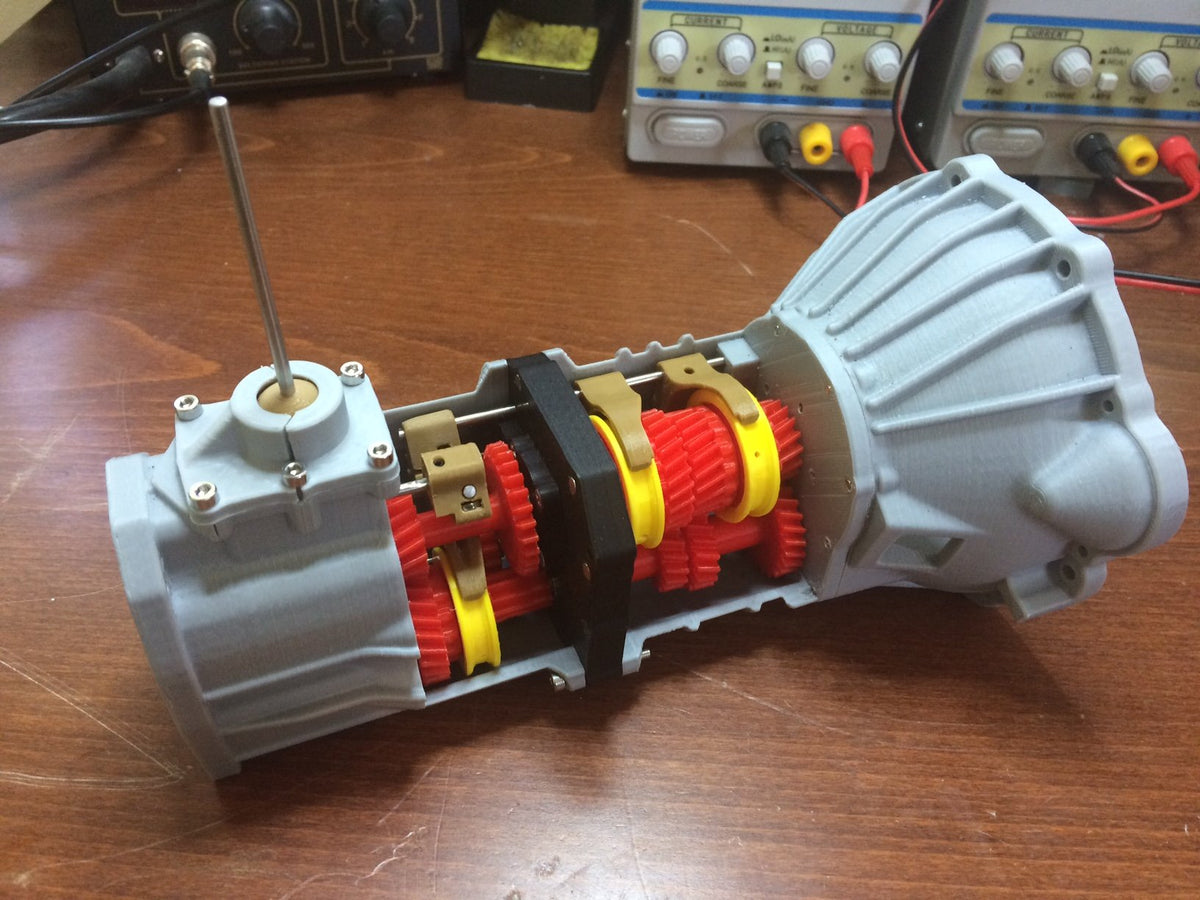

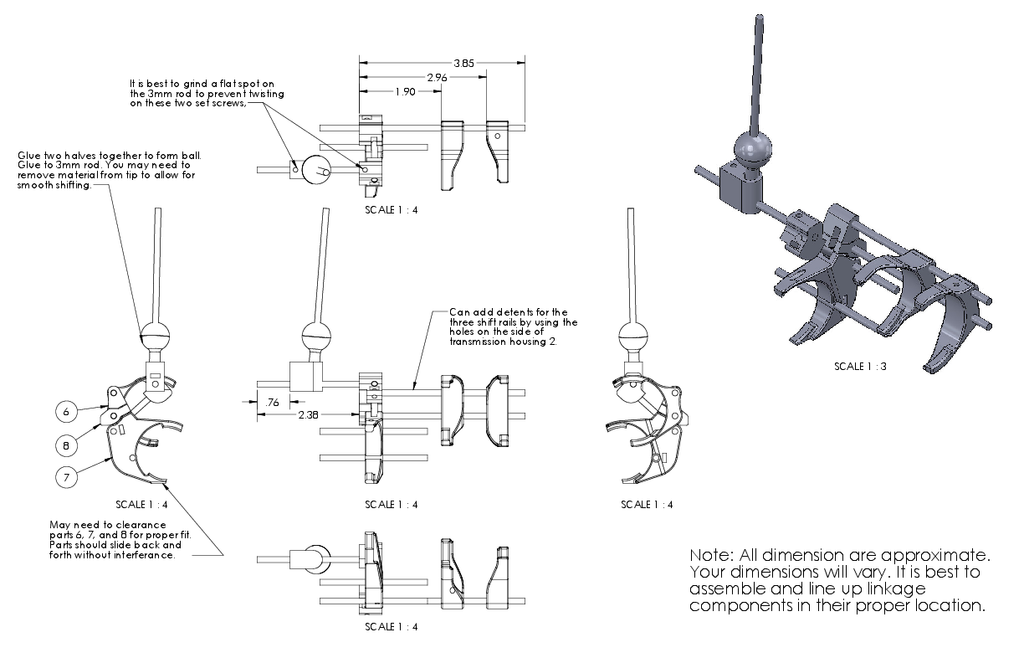

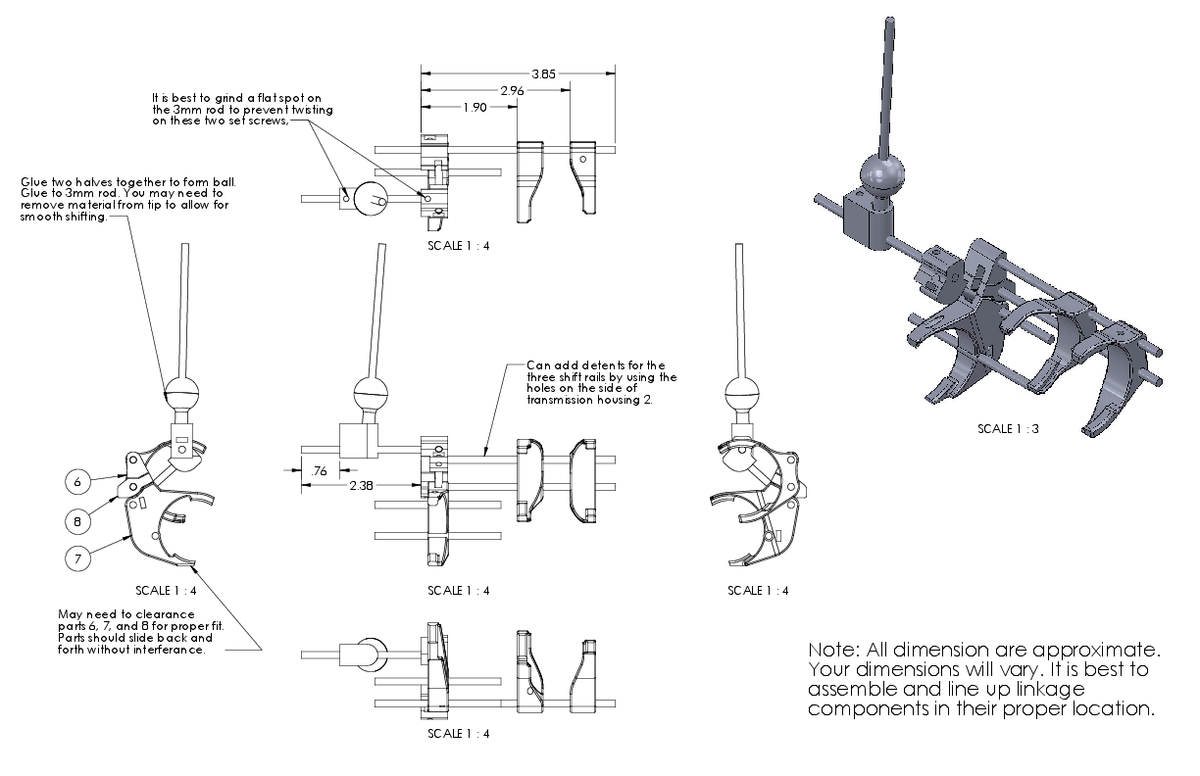

All my models are printed on a Prusa i3 kit. You can find the one I use by clicking the link below. You can get 15% off by using code "GBTE" This is the 5 speed transmission that comes bolted to the back of a 22RE. This is the 4WD version of the transmission so it has a mounting surface to bolt a transfer case to. The transfer case will be the next thing I will upload Fully working. All 5 speeds plus reverse. It uses a good amount of 3mm rod and 623zz bearings. M2.5 x 5mm set screws and nuts were used due to the small size of some of the parts. Shift linkage.stl file updated for more clearance. The old one will still work you just might have to modify it, Transmission housing cover 1 had a problem with the source file not laying flat. New file has been uploaded.
Compatible vehicles
- Toyota
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Working 5 Speed Transmission Model for Toyota 22RE Engine |
|---|---|
| Category | Accessories |
| Make | Toyota |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 30 (STL) |
| Part number | CAT-P00384 |
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
